SFER1480大电流电感

型号	电感值	直流电阻		饱和电流	温升电流	下载
Num	L	DCR		Isat	Irms	Download
	( mH )   at 100KHz/0.25V	( Ω )		( A )	( A )
	TYP	TYP	MAX	TYP	MAX
SFER1480-R40N-R-S	0.4 ±30%	1.0	1.2	66	23
SFER1480-R90M-R-S	0.9 ±20%	1.2	1.5	45	21.5
SFER1480-1R5M-R-S	1.5 ±20%	1.7	2.0	34	20
SFER1480-2R2M-R-S	2.2 ±20%	2.58	3.2	31	18
SFER1480-2R4M-R-S	2.4 ±20%	2.7	3.2	28	17.5
SFER1480-3R4M-R-S	3.4 ±20%	4.1	5.0	23	16
SFER1480-4R7M-R-S	4.7 ±20%	5.0	6.0	19	12.5
SFER1480-6R1M-R-S	6.1 ±20%	6.5	7.8	18.5	11
SFER1480-7R7M-R-S	7.7 ±20%	8.2	9.9	15.5	10
SFER1480-9R5M-R-S	9.5 ±20%	11.1	13.3	14	8.5
SFER1480-100M-R-S	10 ±20%	8.2	9.9	11.5	10
SFER1480-120M-R-S	12 ±20%	11.1	13.3	10	8.5
SFER1480-470M-R-S	47 ±20%	22.3	27	3	2.5

载带卷盘包装：350pcs/卷

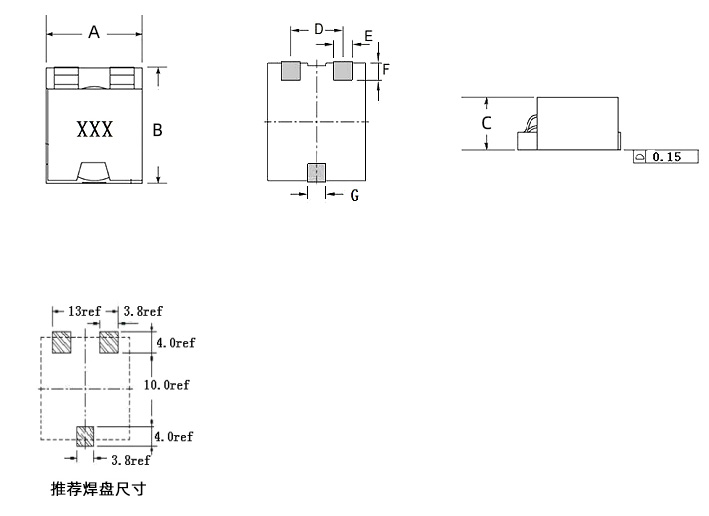

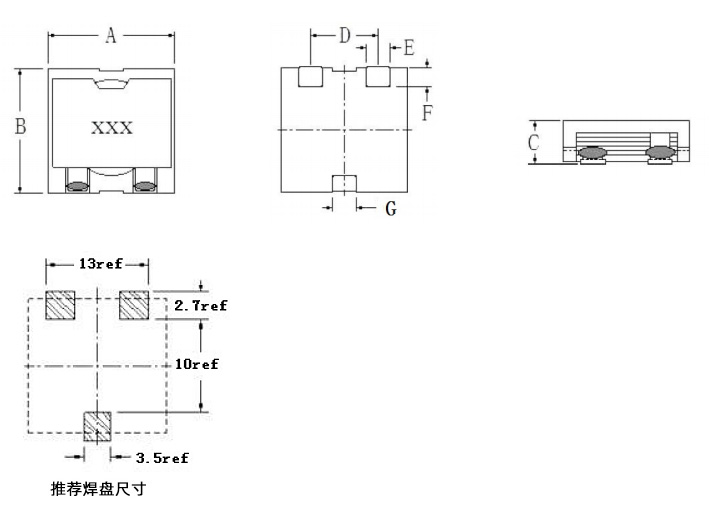

|   SFER1480大电流电感尺寸

|   SFER1480大电流电感应用

SFER1480大电流电感广泛用于消费电子，小家电，电源转换器，电动车，无线通讯，开关电源等
