Detail
| SQ1918 SQ Indudctor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 额定电流 | 直流电阻 | 下载 |
| Num | L | IDC | DCR | Download |
| ( mH ) | ( A ) | ( mΩ ) | ||
| MIN | MAX | MAX | ||
| SQ1918-070A-303-L | 30 | 0.7 | 420 |  SQ1918-SERSIES.PDF |
| SQ1918-050A-453-L | 45 | 0.5 | 400 | SQ1918-SERSIES.PDF |
| SQ1918-060A-403-L | 40 | 0.6 | 400 | SQ1918-SERSIES.PDF |
| SQ1918-065A-353-L | 35 | 0.65 | 400 | SQ1918-SERSIES.PDF |
| SQ1918-075A-253-L | 25 | 0.75 | 300 | SQ1918-SERSIES.PDF |
| SQ1918-090A-253-L | 25 | 0.9 | 250 | SQ1918-SERSIES.PDF |
| SQ1918-090A-223-L | 22 | 0.9 | 250 | SQ1918-SERSIES.PDF |
| SQ1918-100A-203-L | 20 | 1 | 250 | SQ1918-SERSIES.PDF |
| SQ1918-120A-203-L | 20 | 1.2 | 250 | SQ1918-SERSIES.PDF |
| SQ1918-150A-203-L | 20 | 1.5 | 220 | SQ1918-SERSIES.PDF |
| SQ1918-110A-253-L | 25 | 1.1 | 200 | SQ1918-SERSIES.PDF |
| SQ1918-110A-183-L | 18 | 1.1 | 150 | SQ1918-SERSIES.PDF |
| SQ1918-125A-153-L | 15 | 1.25 | 150 | SQ1918-SERSIES.PDF |
| SQ1918-150A-153-L | 15 | 1.5 | 100 | SQ1918-SERSIES.PDF |
| SQ1918-180A-123-L | 12 | 1.8 | 100 | SQ1918-SERSIES.PDF |
| SQ1918-225A-103-L | 10 | 2.25 | 100 | SQ1918-SERSIES.PDF |
Package：75pcs/Tray
| SQ1918 SQ Indudctor Size

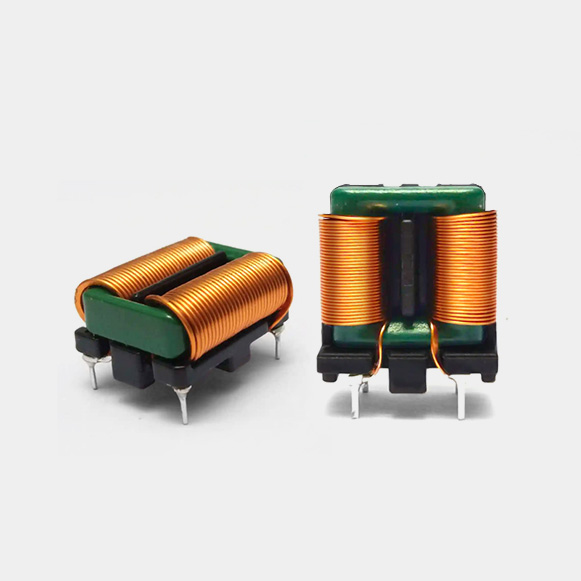

Vertical SQ1918 SQ Inductor L*W*H：23.5*15*25.5mm
Horizontal SQ1918 SQ Inductor L*W*H：24.5*21*14.5mm
| SQ1918 SQ Indudctor Winding
| SQ1918 SQ Indudctor Application
SQ1918 SQ Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical equipment, and adapters.
