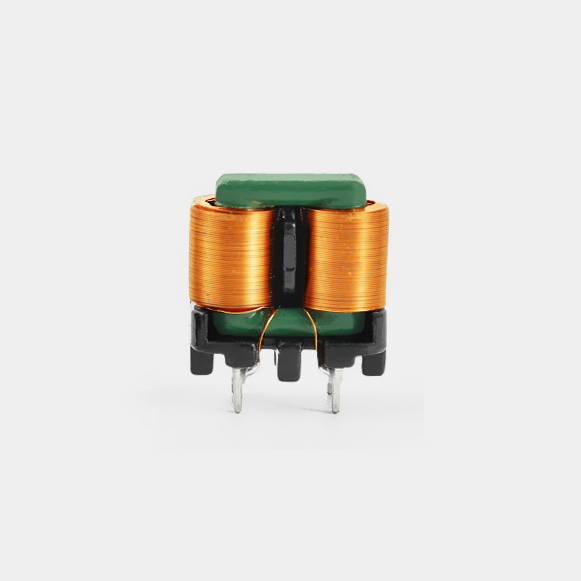

SQ1012 SQ Inductor

share
WeChat
QQ
copy Link
The SQ inductor is a power inductor featuring a flat copper wire winding and high-density magnetic core packaging. The current density of the SQ inductor is 3.3 times that of round copper wire. It is used to suppress common-mode noise in power supplies and enhance the stability and reliability of power supplies.
Size Code 1012
L*W*H 15x15.5x9.5mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SQ1012 SQ Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值耐压直流电阻下载
NumLHI-POTDCRDownload

( mH )( V )

( mΩ )



MINMAXMAX
SQ1012-3mH/0.1*1.0315001801.pngSQ1012-3mH/0.1x1.0.PDF
SQ1012-12mH/0.1*0.71215002601.pngSQ1012-12mH/0.1x0.7.PDF


Package：70pcs/tray




|   SQ1012 SQ Inductor Size

Vertical SQ1212 SQ Inductor L*W*H：15*15.5*9.5mm







|   SQ1012 SQ Inductor Winding







|   SQ1012 SQ Inductor Application

SQ1012 SQ Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical equipment, and adapters.
