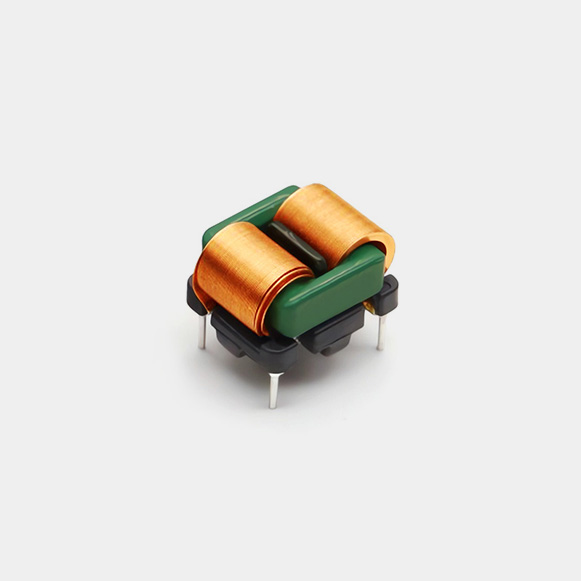

SQ1010 SQ Inductor

share
WeChat
QQ
copy Link
SQ Inductor is a key component which is on complex electromagnetic environment of LED illumination to design, it adopts flat wire wond, compares with traditional round wire, it has higher current density and a more uniform electric field distribution.
Size Code 1010
L*W*H 15.5x15x9.5mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SQ1010 SQ Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值温升电流直流电阻下载
NumLIrmsDCRDownload

( mH )( A )

( mΩ )



MINMAXMAX
SQ1010-152-0.15*1.01.41.51001.pngSQ1010-152-0.15-1.0.PDF
SQ1010-10mH10
2001.pngSQ1010-152-0.15-1.0.PDF


Package：70pcs/tray




|   SQ1010 SQ Inductor Size

Horizontal SQ1010 SQ Inductor：15.5*9.5*15mm




Horizontal SQ1010 SQ Inductor L*W*H：15.5*12*11mm







|   SQ1010 SQ Inductor Winding







|   SQ1010 SQ Inductor Application

SQ1010 SQ Inductor is Widely used in LED lighting power supplies, communication power supplies, small household appliances, medical equipment, and adapters.
