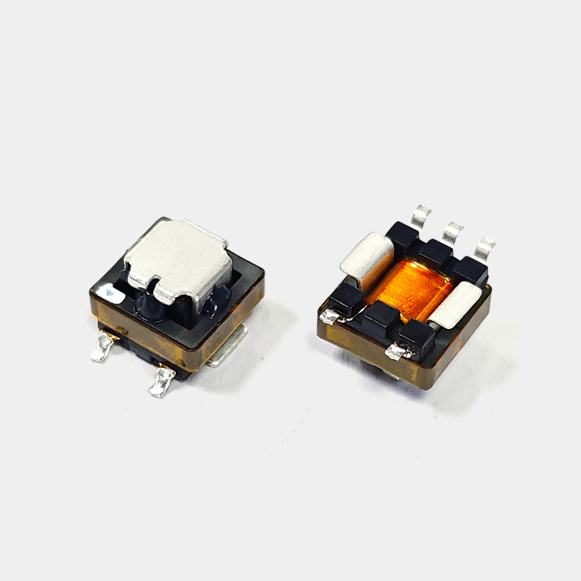

EE8.3/8.5/9 SMD Current Sense Transformer 30A

型号	匝数比	电感值	直流电阻		N2 额定电流	耐压	下载
Num	Turns Ratio	L 1-3	DCR 1-3	DCR 8-7	N2 IDC	HI-POT	DOWLOAD
		( mH ) at 10KHz/1V	( Ω )	( mΩ )	( A )	( V )
	N1:N2	MIN	MAX	MAX	TYP
EE8.3-CT201	20:1	18	0.3	0.5	30	1500
EE8.3-CT301	30:1	18	0.5	0.5	30	1500
EE8.3-CT401	40:1	18	0.7	0.5	30	1500
EE8.3-CT501	50:1	18	1.1	0.5	30	1500
EE8.3-CT601	60:1	18	1.4	0.5	30	1500
EE8.3-CT701	70:1	18	1.6	0.5	30	1500
EE8.3-CT1001	100:1	4.5	3.2	0.5	30	1500
EE8.3-CT1251	125:1	18	5	0.5	30	1500
EE8.3-CT2001	200:1	18	13	0.5	30	1500
EE8.3-CT3001	300:1	40.5	35	0.5	30	1500

载带卷盘包装：500pcs/卷

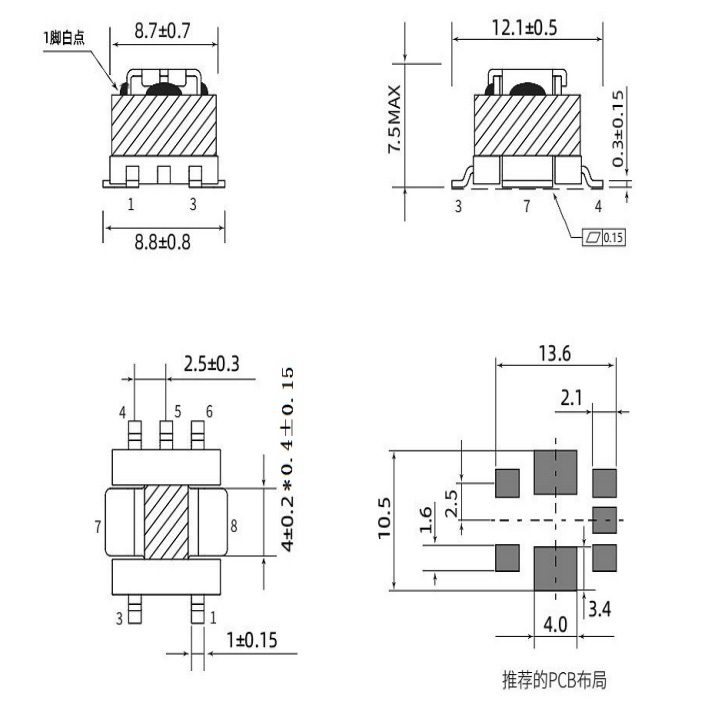

|   EE8.3 SMD Current Sense Transformer Size

EE8.3 SMD Current Sense Transformer L*W*H：8.8*12.1*7.5mm，Physical height: 6.8mm，Flatness<0.15mm

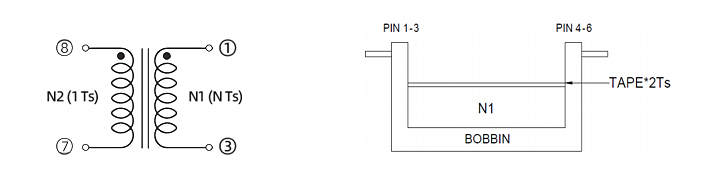

|   EE8.3 SMD Current Sense Transformer Wind

|   EE8.3 SMD Current Sense Transformer Application Circuit and Pins

Resistance(R) _{terminating Calculation}：

R_t (Ohms) = V_out × N_sec / I_pri

e.g.At 100 turns: 1V output voltage and 20A primary current. Secondary has 100 turns. Then Rt = 5Ω

|   EE8.3 SMD Current Sense Transformer Application

EE8.3 SMD Current Sense Transformer is Widely used in photovoltaic inverters, switching power supplies, detection circuits, overload protection sockets, medical equipment, inkjet printers and various other devices
