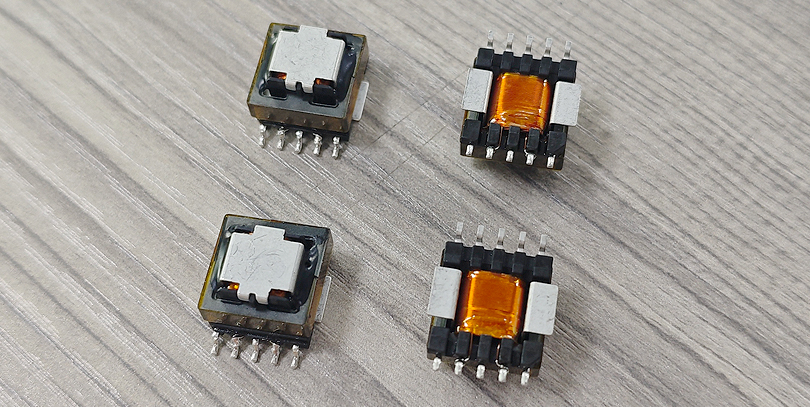

Inverter uses 40A SMD Current Sense Transformer EE12.6

EE12.6 SMD current sense transformer is SMT current detection component based on EE12.6 ferrite core.It is specially designed for power applications such as inverters, with a primary current of up to 40A. It is applicable to both AC and DC currents.

The electric parameter of SMD Current Sense Transformer EE12.6

Magnetic core: EE12.6 ferrite core

Rated Current: 40A

Turn ratio: 1:50 ~ 1:200 (commonly 1:100)

Inductance: 1.4mH ~ 22.4mH (Commonly available: 5.6mH, 7.5mH, 22.4mH)

Primary end DCR: Approximately 0.28 mΩ

Secondary end DCR: varies from 400mΩ to 2500mΩ

Pressure resistance test: 1500V (AC)

The advantages of SMD Current Sense Transformer EE12.6

Extremely low loss: Significantly lower than the power consumption of resistor sampling

High reliability: Sturdy and durable, suitable for industrial environments

Galvanic isolation: Provide electrical isolation to facilitate high-side detection

SMT compatibility: Surface mount design, suitable for automated production

High output signal: Improve the noise resistance

SMD Current Sense Transformer EE12.6 Application

Photovoltaic inverter - Current detection of the new energy photovoltaic system

Energy storage inverter - Current monitoring of the mobile energy storage system

Small DC/DC converter - Current feedback of the power module

Power adapter - Overload protection and current control

Control and protection circuit - Overcurrent protection and load detection

We are SMD Current Sense Transformers EE12.6 supplier in China

Fenfa Electronics can provide mass production and custom services of SMD Current Sense Transformer EE12.6, If you have any need, please feel free to contact us!!
