What kinds of inductors are there?

An inductor is a passive component that operates based on the principle of electromagnetic induction. It is widely used in electronic circuits for tasks such as filtering, energy storage, impedance matching, and signal processing. Depending on its structure, materials, packaging form, and application field, inductors can be classified into various types.

The following are the common types of inductors:

Classified by structure

1.Hollow inductor

Without using magnetic materials as the core, it is usually made by winding wires.

Features: Low inductance, high Q value, suitable for high-frequency circuits.

Application: High-frequency oscillation circuits, radio frequency circuits, etc.

2. Magnetic core inductor

Use magnetic materials (such as ferrite, silicon steel sheets, etc.) as the magnetic core.

Features: Large inductance, low Q value, suitable for low-frequency circuits.

Applications: Power filtering, transformers, low-frequency signal processing, etc.

3. Integral Molded Inductor

The coil is usually integrally formed with the magnetic material through the powder metallurgy process.

Features: Robust structure, low direct current resistance (DCR), suitable for high current applications.

Applications: Power management, automotive electronics, industrial power supply, etc.

4. Thin-film inductor

It is manufactured using thin-film technology, and coils are usually formed by evaporation or sputtering on the substrate.

Features: Small size, high precision, suitable for high-frequency and high-precision circuits.

Applications: High-frequency circuits, Radio Frequency Identification (RFID), etc.

Classified by Using form

1.Plug-in inductor

It is packaged in a vertical plug-in style, which is suitable for traditional plug-in manufacturing processes.

Features: Large in size, good heat dissipation performance.

Application: Household appliances, industrial equipment, etc.

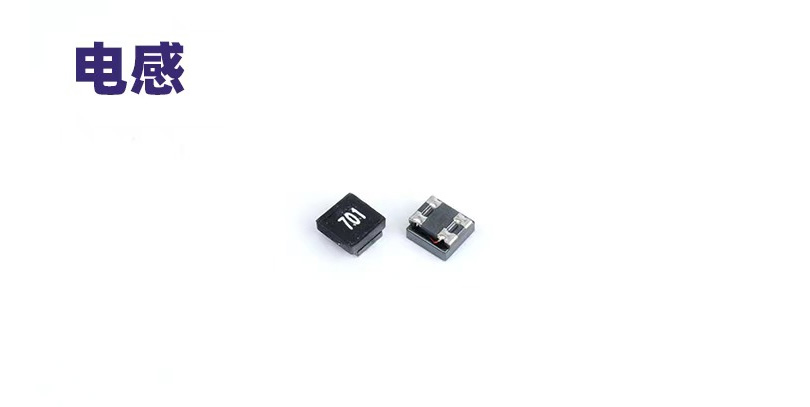

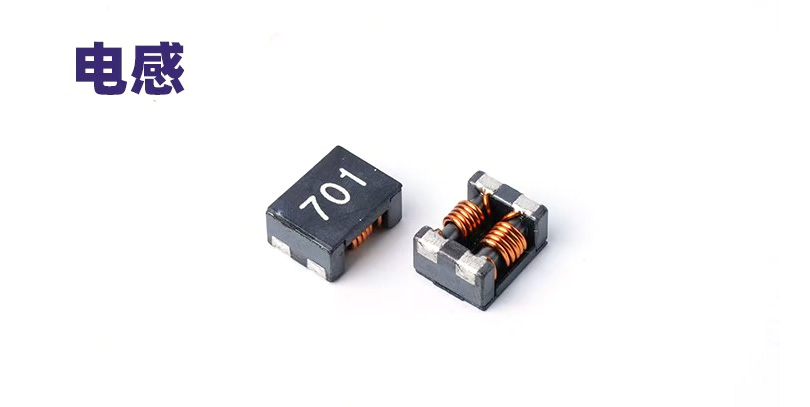

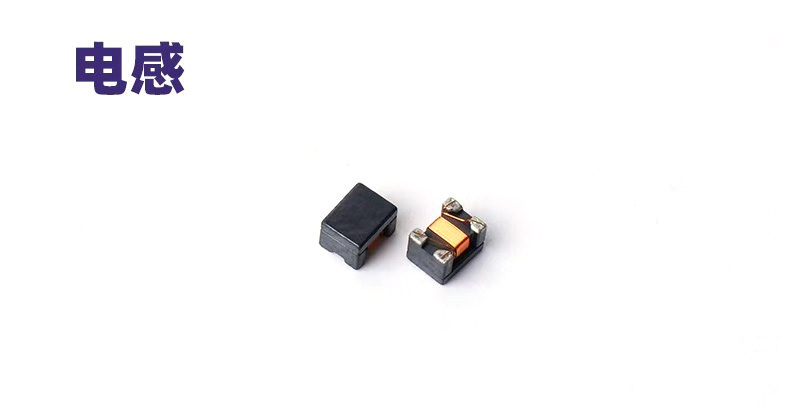

2. Surface Mount Inductor

Using surface mount technology (SMT), it is suitable for automated production.

Features: Compact in size, suitable for high-density circuits.

Application: Consumer electronics, communication equipment, automotive electronics, etc.

Classified by materials

1.Ferrite inductor

Use ferrite materials as the magnetic core.

Features: High frequency performance and low loss.

Application: High-frequency switching power supplies, communication equipment, etc.

2. Silicon steel sheet inductor

Use silicon steel sheets as the core.

Features: High inductance, suitable for low-frequency circuits.

Application: Transformers, power filter, etc.

3. Magnetic gel inductor

It is manufactured using magnetic glue and magnetic powder.

Features: Excellent electromagnetic shielding performance, suitable for high-density circuits.

Application: Automotive electronics, high-frequency circuits, etc.

Classified by application fields

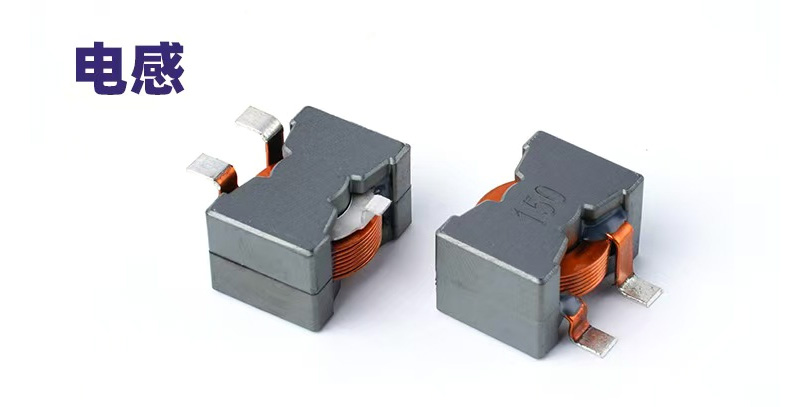

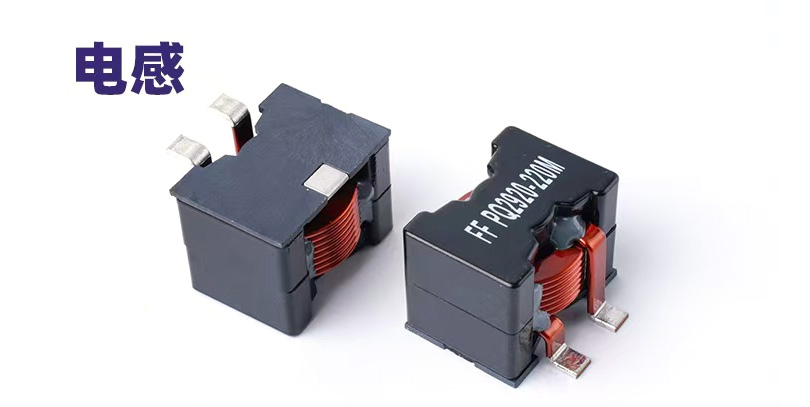

1.Power inductor

Used for filtering, energy storage and voltage boosting/downgrading in power circuits.

Application: Switching power supplies, DC/DC converters, etc.

2. Signal inductor

Used for signal processing, such as filtering, matching impedance, etc.

Application: RF circuits, communication equipment, etc.

3. Automotive Inductors

Designed specifically for automotive electronics, it features high reliability and strong anti-interference capability.

Application: Automotive electronic control systems, in-vehicle infotainment systems, etc.

4. Industrial Inductors

Suitable for industrial automation equipment, featuring high power and high reliability.

Application: Frequency converters, servo drives, etc.

Classification by function

1.Filter inductor

Used to filter out high-frequency noise in the circuit.

Application: Power filtering, signal filtering, etc.

2. Energy storage inductor

Used for storing and releasing electrical energy.

Application: Switching power supplies, DC/DC converters, etc.

3. Coupling Inductor

Used for magnetic coupling between circuits.

Application: Transformers, isolation circuits, etc.

4. High-frequency inductor

Suitable for high-frequency circuits, it features low loss and high Q value.

Application: RF circuits, high-frequency oscillators, etc.

There are numerous types of inductors, each with its own unique structure, materials, and application areas. Choosing the appropriate inductor requires considering specific circuit requirements, such as inductance value, operating frequency, current carrying capacity, and packaging form.
