EE6.0 SMD Current Sense Transformer 20A

share
WeChat
QQ
copy Link

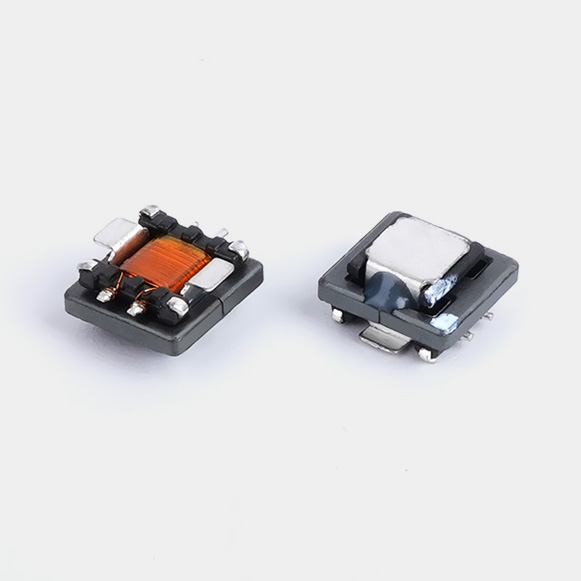

EE6.0 SMD Current Sense Transformer is suitable to high reliability circuit and Protection and detection of the current power supply circui. Just like EE5.0, can meet SMT uses of 20A rated current and small size.
Size Code EE6.0
L*W*H 7.2x6.6x3.8mm
Bonding Pad 6个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   EE6.0 SMD Current Sense Transformer Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号匝数比电感值直流电阻N2 额定电流耐压下载
NumTurns RatioL 1-2DCR 1-2DCR 5-6N2 IDCHI-POTDownload


( μH )( Ω )( mΩ )( A )

( V )



N1:N2MINMAXMAXTYP

EE6电流互感器1:100100:18009.60.5203001.pngEE6-CT1001.PDF


Package：1000pcs/r




|   EE6.0 SMD Current Sense Transformer Size

EE6.0 SMD Current Sense Transformer L*W*H：7.2*6.6*3.8mm







|   EE6.0 SMD Current Sense Transformer Winding







|   EE6.0 SMD Current Sense Transformer Application Circuit and Pins







|   EE6.0 SMD Current Sense Transformer Application

EE6.0 SMD Current Sense Transformer is widely used in photovoltaic inverters, switching power supplies, detection circuits, and overload protection sockets.
