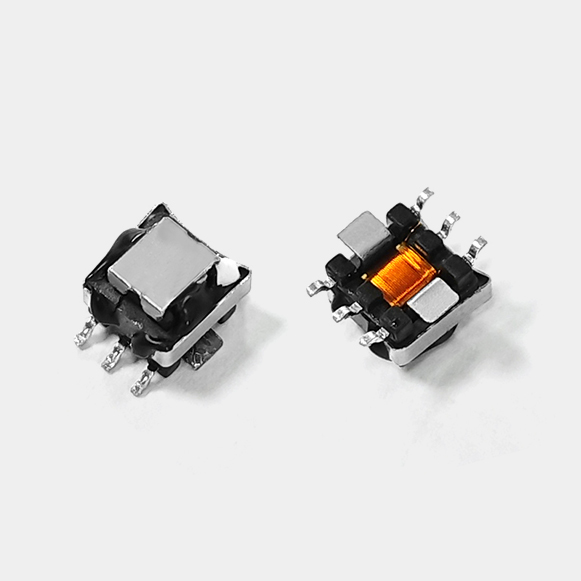

EE5.0 SMD Current Sense Transformer 20A

share
WeChat
QQ
copy Link
EE5.0 SMD Current Sense Transformer which adopts surface mounted technology has features of small size,high accuracy,convenient to install and so on. It widely used in small photovoltaic inverter and power circuit. Therefore, developing integrated, miniaturized and high-performance chip-type current transformers has become an urgent and important issue that needs to be addressed at present.
Size Code EE5.0
L*W*H 7.5x8.15x5.5mm
Bonding Pad 8个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   EE5.0 SMD Current Sense Transformer Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号匝数比电感值直流电阻N2 额定电流耐压下载
NumTurns RatioL 1-3DCR 1-3DCR 8-7N2 IDCHI-POTDownload


( mH )10KHz/0.1V( Ω )( mΩ )( A )

( V )



N1:N2MINMAXMAXTYP

EE5电流互感器1:2020:10.080.550.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:3030:10.180.870.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:4040:10.321.140.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:5050:10.51.50.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:6060:10.722.250.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:7070:11.0293.80.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:100100:12.15.50.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:125125:136.50.75206001.pngEE5-SERIER.PDF
EE5电流互感器1:200200:18.9180.75206001.pngEE5-SERIER.PDF


Package：1000pcs/r




|   EE5.0 SMD Current Sense Transformer Size

EE5.0 SMD Current Sense Transformer L*W*H：8.15*7.5*5.5mm，Flatness<0.15mm







|   EE5.0 SMD Current Sense Transformer Winding







|   EE5.0 SMD Current Sense Transformer Application Circuit and Pins







|   EE5.0 SMD Current Sense Transformer Application

EE5.0 SMD Current Sense Transformer is widely used in photovoltaic inverters, switching power supplies, detection circuits, and overload protection sockets.
