EE4.6 SMD Current Sense Transformer 20A

share
WeChat
QQ
copy Link

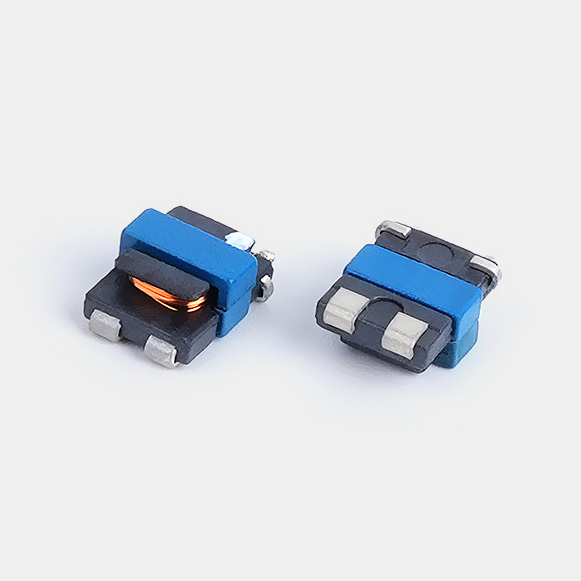

EE4.6 SMD Current Sense Transformer,rated current 9A, is belongs to small components.It performs excellent on high frequent application and miniaturized circuit,and also can meet special requirement of relavent circuit.
Size Code EE4.6
L*W*H 7x5.2x3mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   EE4.6 SMD Current Sense Transformer Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号匝数比电感值直流电阻N1 额定电流耐压下载
NumTurns RatioL 1-2DCR 1-2DCR 3-4N1 IDCHI-POTDownload


( mH )( Ω )( mΩ )( A )

( V )



N1:N2MINMAXMAXTYP

EE4R6-CT0701K1:700.6525.0415205001.pngEE4R6 Series.PDF
EE4R6-CT1001K1:1001.33010.6815205001.pngEE4R6 Series.PDF
EE4R6-CT1501K1:1502.99322.3015205001.pngEE4R6 Series.PDF


Package：1000pcs/r




|   EE4.6 SMD Current Sense Transformer Size

EE4.6 SMD Current Sense Transformer L*W*H：7*5.2*3mm，Flatness<0.15mm







|   EE4.6 SMD Current Sense Transformer Winding







|   EE4.6 SMD Current Sense Transformer Application Circuit and Pins







|   EE4.6 SMD Current Sense Transformer Application

EE4.6 SMD Current Sense Transformer is widely used in photovoltaic inverters, switching power supplies, detection circuits, and overload protection sockets.
