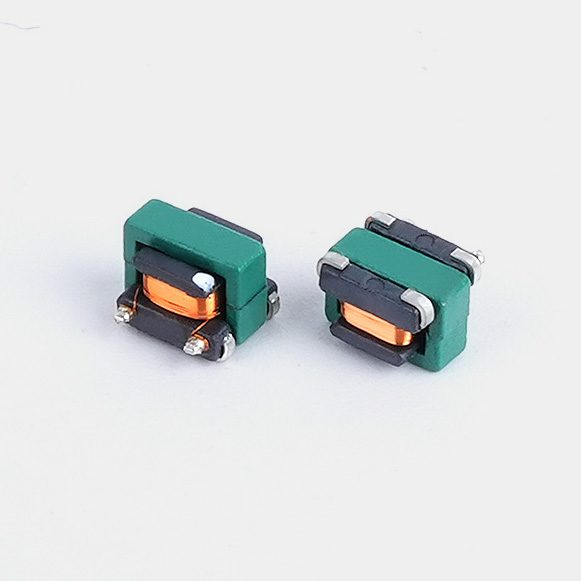

EE4.0/4.2/4.4 SMD Current Sense Transformer 7A

型号	匝数比	电感值	直流电阻		N1 额定电流	耐压	下载
Num	Turns Ratio	L 1-2	DCR 1-2	DCR 3-4	N1 IDC	HI-POT	Download
		( μH )	( Ω )	( mΩ )	( A )	( V )
	N1:N2	MIN	MAX	MAX	TYP
EE4电流互感器1:20	1:20	33	0.35	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:30	1:30	74	0.9	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:40	1:40	132	1.6	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:50	1:50	205	2.5	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:60	1:60	295	3.6	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:70	1:70	400	4.6	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:100	1:100	820	9.6	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:125	1:125	1280	13	3.0	7	300	EE4-820-CT1001.PDF
EE4电流互感器1:150	1:150	1800	21	3.0	7	300	EE4-820-CT1001.PDF

Package：1000pcs/r

|   EE4.0 SMD Current Sense Transformer Size

EE4.0 SMD Current Sense Transformer L*W*H：4.7*4.3*3.5mm，Flatness<0.15mm

|   EE4.0 SMD Current Sense Transformer Winding

|   EE4.0 SMD Current Sense Transformer Application Circuit and Pins

The terminating resistance R_terminating is calculated based on a 1V output voltage, a primary current of 7A, and 100 turns on the secondary coil. Thus, R_t=14.5Ω

Changing the terminal resistance can increase or decrease the output voltage/current calculation according to the following equation:

R_t (Ohms) = V_out × N_sec / I_pri

|   EE4.0 SMD Current Sense Transformer Application

EE4.0 SMD Current Sense Transformer is widely used in photovoltaic inverters, switching power supplies, detection circuits, and overload protection sockets.
