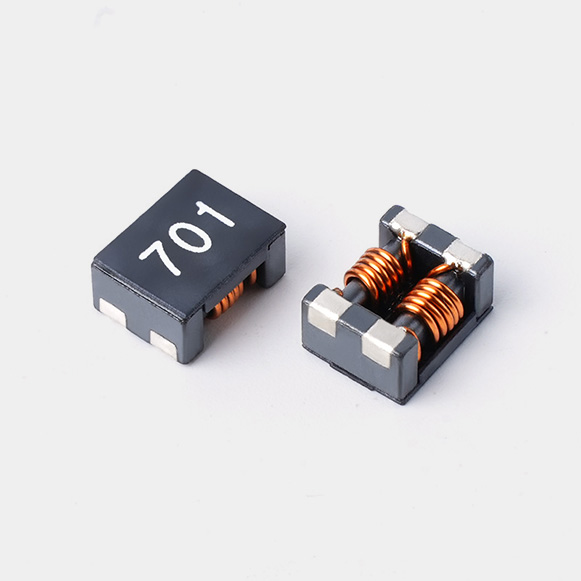

FCM9070 Common Mode Inductor

share
WeChat
QQ
copy Link
The FCM9070 series of common-mode inductors are high-performance components for suppressing common-mode noise. Their design aims to provide efficient noise filtering capabilities, featuring low DC resistance (DCR) and high rated current, making them suitable for high-power and high-reliability applications.
Size Code 9070
L*W*H 9.5x7x5mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   FCM9070 Common Mode Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号阻抗直流电阻额定电流绝缘电阻工作电压下载
NumZDCRIDCIRRated Voltage
Download

（Ω）at100MHz（mΩ）（A）
（mΩ）（V）


MINTYPMAXMAXMINMAX
FCM9070-301-R-S22530051010801.pngFCM9070-SERIES.PDF
FCM9070-501-R-S4506006810801.pngFCM9070-SERIES.PDF
FCM9070-701-R-S5007009610801.pngFCM9070-SERIES.PDF
FCM9070-701-8A-R-S-双线5007009.5810801.pngFCM9070-701-8A-R-S-双线.PDF
FCM9070-102-R-S750100013510801.pngFCM9070-SERIES.PDF
FCM9070-152-R-S11001500154.510801.pngFCM9070-SERIES.PDF
FCM9070-202-R-S1500200020410801.pngFCM9070-SERIES.PDF
FCM9070-222-R-S1700220028410801.pngFCM9070-SERIES.PDF
FCM9070-272-R-S20002700403.510801.pngFCM9070-SERIES.PDF
FCM9070-302-R-S2400320045310801.pngFCM9070-SERIES.PDF



型号电感值阻抗直流电阻额定电流绝缘电阻工作电压下载
NumLZDCRIDCIRRated Voltage
Download

( μH ) at100KHz/0.1V( Ω ) at100MHz/0.5V( mΩ )( A )
( mΩ )( V )


MINTYPTYPTYPMAXMAXMINMAX
FCM9070-332-R-S12.5223300（+50%/-30%）65
901.51001251.pngFCM9070-332-R-S.PDF


Package：750pcs/r



|   FCM9070 Common Mode Inductor Size


A：9.5±0.5 mmB：7.0±0.5 mm
C：5.0MAX mmD：3.8±0.3 mm
E：5.6±0.3 mmF：1.7typ mm
G：1.8typ mm
a：3.0ref mmb：5.0ref mm
c：2.0ref mmd：1.8ref mm








|   FCM9070 Common Mode Inductor Winding







|   FCM9070 Common Mode Inductor Application

FCM9070 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
