FCM706029F-701 Common Mode Inductor
share

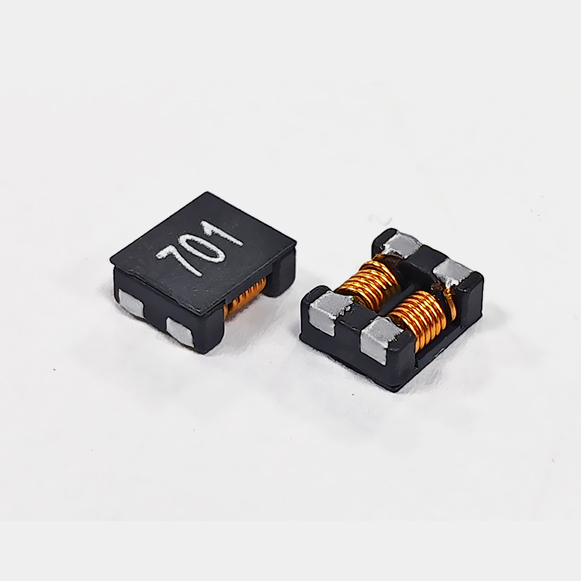

The FCM706029B series of common-mode inductors (produced by Fenfa Electronics) feature:
Designed for filtering in thin and light charging devices
Surface mount installation, making it a common-mode inductor model suitable for mobile charging devices to pass certification
Designed for filtering in thin and light charging devices
Surface mount installation, making it a common-mode inductor model suitable for mobile charging devices to pass certification
Detail
| FCM706029F Common Mode Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 阻抗 | 直流电阻 | 额定电流 | 绝缘电阻 | 工作电压 | 下载 | |
| Num | L | Z | DCR | IDC | IR | Rated Voltage | Download | |
| （μH） | ( Ω ) at100MHz | ( mΩ ) | ( A ) | ( mΩ ) | ( V ) | |||
| TYP | MIN | TYP | MAX | MAX | MIN | MAX | ||
| FCM706027-701-R-S | 4.5 | 500 | 700 | 21 | 4.5 | 10 | 125 |  FCM706027-701-R-S.PDF |
Package：1500pcs/r
| FCM706029F Common Mode Inductor Size
| A：7.0±0.5 mm | B：6.0±0.5 mm |
| C：2.7MAX mm | D：3.5typ mm |
| E：1.5typ mm | F：1.5typ mm |
| G：1.75typ mm |
| FCM706029F Common Mode Inductor Winding
| FCM706029F Common Mode Inductor Application
FCM706029F Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
