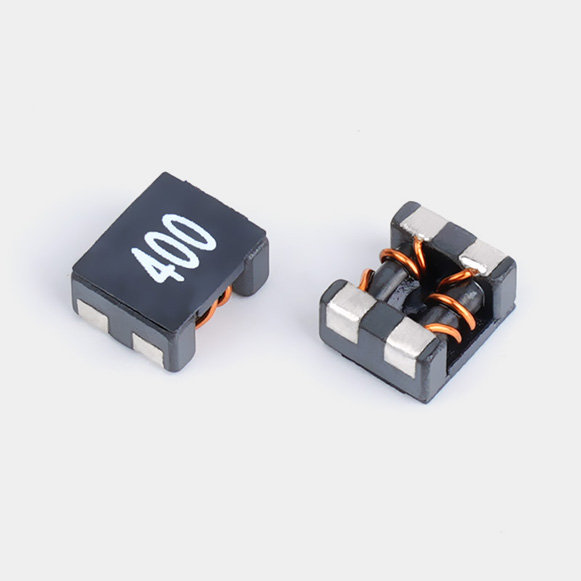

FCM7060F Common Mode Inductor
share
FCM7060 Series Common Mode Inductors (Fenfa Electronics) Technical Highlights:
Designed for power circuit filtering
Surface mount, with a lower profile model available as FCM706027B
A commonly used common mode inductor model for mobile power banks
Designed for power circuit filtering
Surface mount, with a lower profile model available as FCM706027B
A commonly used common mode inductor model for mobile power banks
Detail
| FCM7060F Common Mode Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 阻抗 | 直流电阻 | 额定电流 | 绝缘电阻 | 工作电压 | 下载 | |
| Num | Z | DCR | IDC | IR | Rated Voltage | Download | |
| ( Ω ) at100MHz | ( mΩ ) | ( A ) | ( mΩ ) | ( V ) | |||
| MIN | TYP | MAX | MAX | MIN | MAX | ||
| FCM7060F-400-R-S | 40 | 70 | 4 | 15 | 10 | 80 |  FCM7060F-SERIES.PDF |
| FCM7060F-700-R-S | 40 | 70 | 5 | 15 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-101-R-S | 70 | 100 | 10 | 9 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-301-R-S | 230 | 300 | 10 | 5 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-501-R-S | 350 | 500 | 10 | 5 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-501-R-T1-037 | 400 | 470 | 10 | 10 | 10 | 125 | FCM7060F-501-R-T1-037.PDF |
| FCM7060F-701-R-S | 500 | 700 | 15 | 4 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-102-R-S | 800 | 1000 | 17 | 3 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-132-R-S | 910 | 1300 | 21 | 2.5 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-132-3.2A-R-T1 | 910 | 1300 | 21 | 3.2 | 10 | 80 | FCM7060F-132-3.2A-R-T1-0.3线径.PDF |
| FCM7060F-152-R-S | 1300 | 1500 | 35 | 1.8 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-222-R-S | 1700 | 2200 | 60 | 1.2 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-272-R-S | 2000 | 2700 | 63 | 1.0 | 10 | 80 | FCM7060F-SERIES.PDF |
| FCM7060F-302-R-S | 2500 | 3000 | 80 | 0.9 | 10 | 80 | FCM7060F-SERIES.PDF |
Package：1500pcs/r
| FCM7060F Common Mode Inductor Size
| A：7.0±0.5 mm | A1：7.5±0.5 mm |
| B：6.0±0.5 mm | C：3.8MAX mm |
| D：3.0±0.3 mm | E：3.5±0.3 mm |
| F：1.6typ mm | G：1.7typ mm |
| a：3.0ref mm | b：2.9ref mm |
| c：1.9ref mm | d：1.3ref mm |
| FCM7060F Common Mode Inductor Winding
| FCM7060F Common Mode Inductor Application
FCM7060F Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
