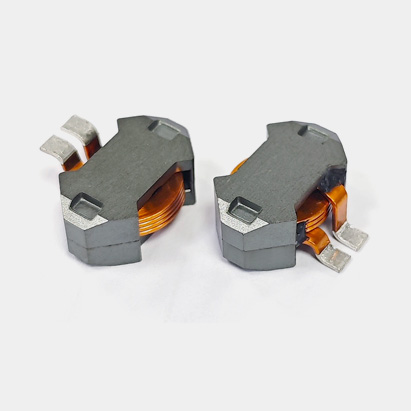

RM61876 High Current Inductor

share
WeChat
QQ
copy Link
RM61876 Series High Current Inductors (Produced by Fenfa Electronics) Technical Highlights:
Designed for boost circuits
Flat coil, surface-mount installation
High current, low resistance, low loss
Compact size, low profile, 500V withstand voltage rating
Size Code 1876
L*W*H 18.1x15.8x7.6mm
Bonding Pad 2
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   RM61876 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH ) at 20KHz/0.25V( mΩ )( A )( A )


TYPMAXMAXMAX


Package: 3000pcs/r

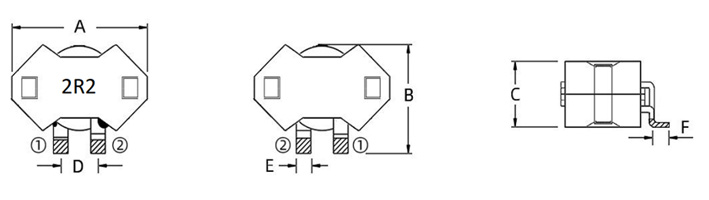

|   RM61876 High Current Inductor Size

RM61876 High Current Inductor L*W*H：18.1*15.8*7.6mm，Flatness<0.15mm



A：18.1MAX mmB：15.8MAX mm
C：7.6MAX mmD：3.7±0.3 mm
E：2.4±0.2 mmF：2.4±0.2 mm







|   RM61876 High Current Inductor Application

RM61876 High Current Inductor is Widely used in various boost circuits, energy storage devices, automotive power supplies, high-power power modules, PFC boosters, AI server power supplies, electric vehicles, tractors, and communication equipment
