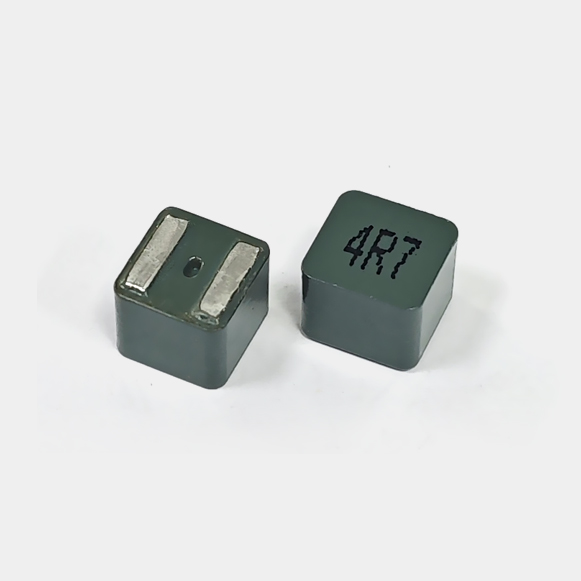

XALB6060 Flat Wire Inductor

share
WeChat
QQ
copy Link
Size Code 6060
L*W*H 6.7x6.5x6.1mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   XALB6060 Flat Wire Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH )( mΩ )( A )
( A )


TYPMAXMAXMAX

XALB6060-R47M-R-S0.471.829.5261MHz/0.1V1.pngXALB6060-SERIES.PDF
XALB6060-4R7M-R-S4.710.110.213.51MHz/0.1V1.pngXALB6060-SERIES.PDF
XALB6060-6R8M-R-S6.8148.911.51MHz/0.1V1.pngXALB6060-SERIES.PDF
XALB6060-100M-R-S1029.87.69.11MHz/0.1V1.pngXALB6060-SERIES.PDF
XALB6060-220M-R-S22615.851MHz/0.1V1.pngXALB6060-SERIES.PDF


Package：750pcs/r




|   XALB6060 Flat Wire Inductor Size


A：6.71±0.2 mmB：6.51±0.2 mm
C：6.1MAX mmD：5typ mm
E：1.25±0.1 mmF：2.79±0.25 mm
L：5.5typ mmG：3.6typ mm
H：5.5typ mm








|   XALB6060 Flat Wire Inductor Application

XALB6060 Power Inductor is

Widely used in automotive electronics, consumer electronics, switching power supplies,

multimedia equipment, industrial equipment, and communication equipment.
