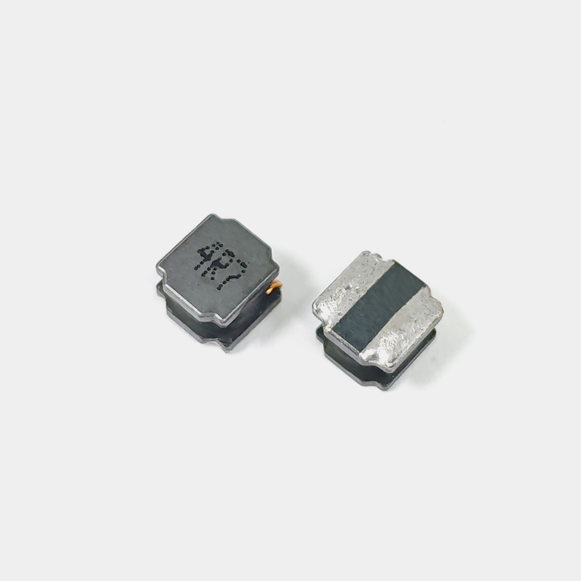

SFNR6028 NR Inductor

型号	电感值	直流电阻	饱和电流	测试频率	下载
Num	L	DCR	Isat	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	TYP
SFNR6028-R68M-R-S	0.68	13	6.9	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-1R0M-R-S	1	15	6.7	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-1R5M-R-S	1.5	20	6	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-1R6M-R-S	1.6	20	6	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-2R2M-R-S	2.2	26	5.1	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-3R3M-R-S	3.3	32	3.63	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-3R6M-R-S	3.6	35	3.3	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-4R7M-R-S	4.7	42	3	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-5R6M-R-S	5.6	65	2.8	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-6R0M-R-S	6.0	65	2.8	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-6R2M-R-S	6.2	65	2.8	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-6R8M-R-S	6.8	72	2.6	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-8R2M-R-S	8.2	88	2.4	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-100M-R-S	10	96	2.05	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-120M-R-S	12	114	1.8	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-150M-R-S	15	162	1.75	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-180M-R-S	18	169	1.55	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-220M-R-S	22	182	1.45	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-270M-R-S	27	234	1.4	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-330M-R-S	33	286	1.35	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-470M-R-S	47	364	1.15	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-680M-R-S	68	585	0.95	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-820M-R-S	82	676	0.8	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-101M-R-S	100	845	0.65	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-121M-R-S	120	936	0.56	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-151M-R-S	150	1100	0.48	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-201M-R-S	200	1870	0.45	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-221M-R-S	220	1900	0.4	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-331M-R-S	330	2730	0.38	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-391M-R-S	390	3120	0.37	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-471M-R-S	470	3900	0.36	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-561M-R-S	560	4500	0.31	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-681M-R-S	680	5850	0.25	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-102M-R-S	1000	7540	0.2	100KHz/0.25V	SFNR6028-SERIES.PDF
SFNR6028-222M-R-S	2200	1954	0.1	100KHz/0.25V	SFNR6028-SERIES.PDF

Package：2000pcs/r

|   SFNR6028 NR Inductor Size

|   SFNR6028 NR Inductor Application

SFNR6028 NR Inductor is widely used in consumer electronics, small household appliances, power converters, electric vehicles, wireless communication, switching power supplies, etc.
