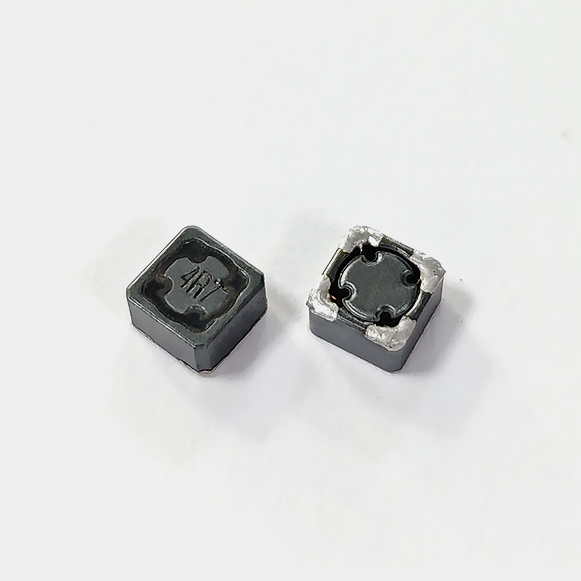

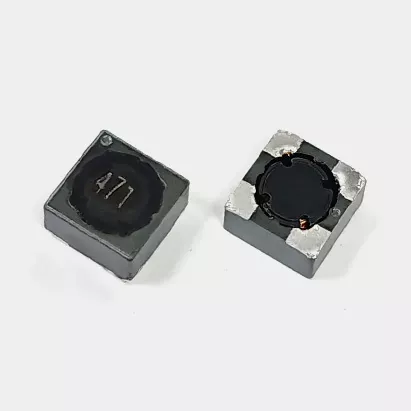

HCM5030 Common Mode Inductor

型号	电感值	直流电阻	漏感	饱和电流	温升电流	下载
Num	L	DCR	Leak L	Isat	Irms	Download
	( μH ) at100KHz/0.1V	( Ω )	( μH ) at100KHz/0.1V	( A )	( A )
	TYP	MAX	MAX	MAX	MAX
HCM5030-1R0N-R-S-LF	1±30%	0.042	0.75	5	3.68	HCM5030-SERIES.PDF
HCM5030-1R5M-R-S-LF	1.5±20%	0.048	0.75	4.3	3.11	HCM5030-SERIES.PDF
HCM5030-2R2M-R-S-LF	2.2±20%	0.067	0.75	3.4	3.04	HCM5030-SERIES.PDF
HCM5030-3R3M-R-S-LF	3.3±20%	0.077	0.75	2.8	2.62	HCM5030-SERIES.PDF
HCM5030-4R7M-R-S-LF	4.7±20%	0.111	0.75	2.2	2.05	HCM5030-SERIES.PDF
HCM5030-5R6M-R-S-LF	5.6±20%	0.125	0.75	2.1	1.91	HCM5030-SERIES.PDF
HCM5030-6R8M-R-S-LF	6.8±20%	0.159	0.75	1.9	1.7	HCM5030-SERIES.PDF
HCM5030-100M-R-S-LF	10±20%	0.210	0.75	1.3	1.48	HCM5030-SERIES.PDF
HCM5030-150M-R-S-LF	15±20%	0.298	0.75	1.4	1.2	HCM5030-SERIES.PDF
HCM5030-220M-R-S-LF	22±20%	0.452	0.75	1.1	0.99	HCM5030-SERIES.PDF
HCM5030-330M-R-S-LF	33±20%	0.565	0.75	0.85	0.85	HCM5030-SERIES.PDF
HCM5030-470M-R-S-LF	47±20%	0.806	0.75	0.72	0.71	HCM5030-SERIES.PDF
HCM5030-680M-R-S-LF	68±20%	1.13	0.75	0.55	0.64	HCM5030-SERIES.PDF
HCM5030-101M-R-S-LF	100±20%	1.79	0.75	0.56	0.49	HCM5030-SERIES.PDF
HCM5030-151M-R-S-LF	150±20%	2.43	0.75	0.45	0.43	HCM5030-SERIES.PDF
HCM5030-221M-R-S-LF	220±20%	3.3	0.75	0.36	0.37	HCM5030-SERIES.PDF
HCM5030-331M-R-S-LF	330±20%	5.36	0.75	0.32	0.28	HCM5030-SERIES.PDF
HCM5030-471M-R-S-LF	470±20%	7.51	0.75	0.26	0.23	HCM5030-SERIES.PDF
HCM5030-681M-R-S-LF	680±20%	10.8	0.75	0.21	0.19	HCM5030-SERIES.PDF
HCM5030-102M-R-S-LF	1000±20%	16.5	0.75	0.17	0.15	HCM5030-SERIES.PDF

Package：2000pcs/r

|   HCM5030 Common Mode Inductor Size

|   HCM5030 Common Mode Inductor Winding

|   HCM5030 Common Mode Inductor   Application

HCM5030 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
