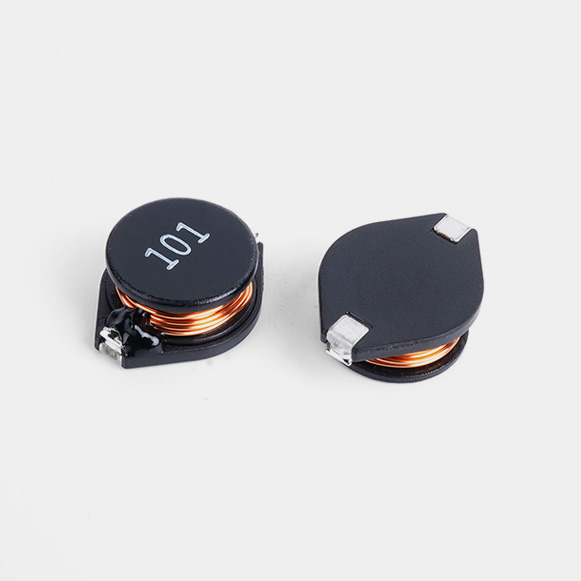

SFP5022F Power Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
SFP5022F-1R0M-R-S-LF	1	9	20	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-2R2M-R-S-LF	2.2	14	16	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-3R3M-R-S-LF	3.3	18	14	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-5R6M-R-S-LF	5.6	20	12	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-100M-R-S-LF	10	31	10	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-150M-R-S-LF	15	36	8	100KHz/0.1V	SF5022F-SERIES.PDF
SFP5022F-220M-R-S-LF	22	47	7	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-330M-R-S-LF	33	66	5.5	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-470M-R-S-LF	47	86	4.5	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-680M-R-S-LF	68	130	3.5	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-101M-R-S-LF	100	190	3	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-151M-R-S-LF	150	250	2.6	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-221M-R-S-LF	220	380	2.4	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-331M-R-S-LF	330	560	1.9	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-471M-R-S-LF	470	850	1.4	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-681M-R-S-LF	680	1100	1.2	100KHz/0.1V	SFP5022F-SERIES.PDF
SFP5022F-102M-R-S-LF	1000	1800	1	100KHz/0.1V	SFP5022F-SERIES.PDF

Package：250pcs/r

|   SFP5022F Power Inductor Size

|   SFP5022F Power Inductor Applicatioin

SFP5022F Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
