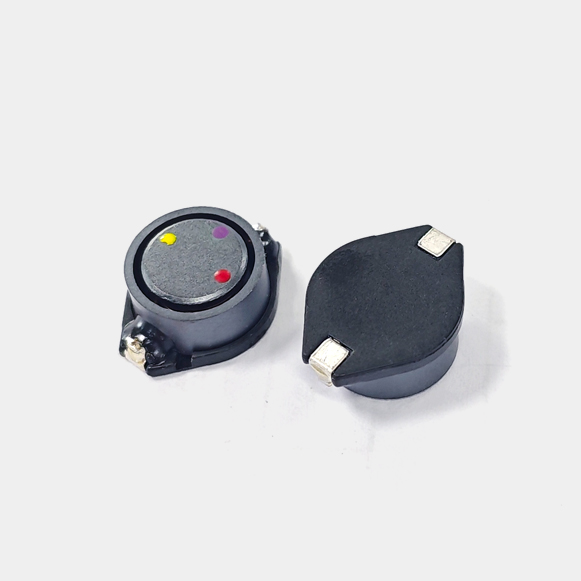

SFP5022C Power Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
SFP5022C-100M-R-S-LF	10	40	8	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-150M-R-S-LF	15	48	7	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-220M-R-S-LF	22	59	6	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-330M-R-S-LF	33	75	5	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-470M-R-S-LF	47	97	4	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-680M-R-S-LF	68	138	3	100KHz/0.1V	SF5022C-SERIES.PDF
SFP5022C-101M-R-S-LF	100	207	2.4	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-151M-R-S-LF	150	293	2.1	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-221M-R-S-LF	220	470	1.9	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-331M-R-S-LF	330	780	1.1	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-471M-R-S-LF	470	1080	1.1	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-681M-R-S-LF	680	1400	0.96	100KHz/0.1V	SFP5022C-SERIES.PDF
SFP5022C-102M-R-S-LF	1000	2010	0.8	100KHz/0.1V	SFP5022C-SERIES.PDF

Package：250pcs/r

|   SFP5022C Power Inductor Size

|   SFP5022C Power Inductor Application

SFP5022C Power Inductor is

widely used in consumer electronics, small household appliances, high-speed hair dryers,

audio equipment, headphones, vacuum cleaners, etc.
