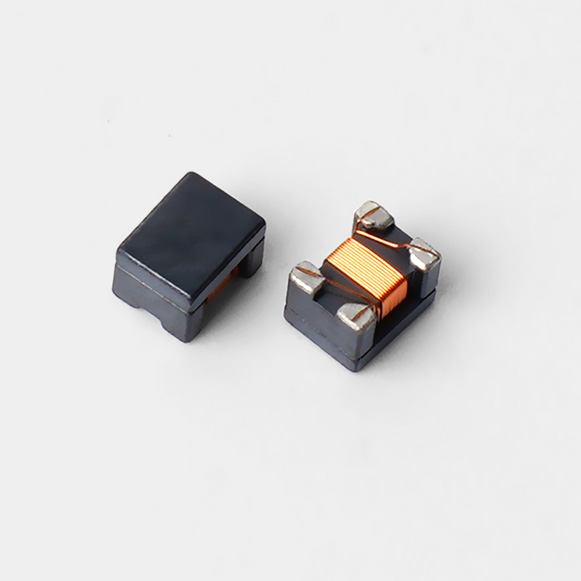

| SFW4532S Common Mode Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 阻抗 | 测试频率 | 直流电阻 | 额定电流 | 额定电压 | 绝缘电阻 | 下载 |
| Num | Z | TEST FREQ. | DCR | IDC | Rated Voltage | IR | Download |
| ( Ω ) | ( Ω ) | ( mA ) | ( Ω ) | ( mΩ ) | |||
| TYP | MAX | MAX | TYP | MIN | |||
| SFW4532S-510-2P-T | 51 ±30% | 100MHz | 1.0 | 230 | 50 | 10 |  SFW-SERIES.PDF |
| SFW4532S-331-2P-T | 330 ±25% | 100MHz | 0.11 | 1100 | 50 | 10 | SFW-SERIES.PDF |
| SFW4532S-601-2P-T | 600 ±25% | 100MHz | 0.12 | 1000 | 50 | 10 | SFW-SERIES.PDF |
| SFW4532S-801-2P-T | 800 ±25% | 100MHz | 0.16 | 900 | 50 | 10 | SFW-SERIES.PDF |
| SFW4532EL Common Mode Inductor Specification
| 型号 | 阻抗 | 电感值 | 直流电阻 | 额定电流 | 额定电压 | 绝缘电阻 | 下载 | |
| Num | Z | L | DCR | IDC | Rated Voltage | IR | Download | |
| ( Ω ) | ( μH ) at100KHz/100mV | ( Ω ) | ( mA ) | ( Ω ) | ( mΩ ) | |||
| MIN | TYP | TYP | MAX | MAX | TYP | MIN | ||
| SFW4532EL-110 | 300 | 600 | 11 +50%/-30% | 0.6 | 250 | 50 | 10 | SFW4532EL-SERIES.PDF |
| SFW4532EL-220 | 500 | 1200 | 22 +50%/-30% | 1 | 200 | 50 | 10 | SFW4532EL-SERIES.PDF |
| SFW4532EL-510 | 1000 | 2800 | 51 +50%/-30% | 1 | 200 | 50 | 10 | SFW4532EL-SERIES.PDF |
| SFW4532EL-101 | 2000 | 5800 | 100 +50%/-30% | 2 | 150 | 50 | 10 | SFW4532EL-SERIES.PDF |
Package：1000pcs/r
| SFW4532 Common Mode Inductor Size
| A：4.5±0.2 mm | B：2.8±0.2 mm |
| C：3.2±0.2 mm | D1：0.8ref mm |
| D2：1.1ref mm | E：0.5MAX mm |
| F：3.2ref mm | G：1.0ref mm |
| H：2.0ref mm | K：5.1ref mm |
| SFW4532 Common Mode Inductor Application
SFW4532 Common Mode Inductor is Widely used in computers and peripheral devices such as USB cables, computers, DVDs, set-top boxes, IEEE1394 cables, LVDS, LCD display panel cables, graphics cards, etc.
