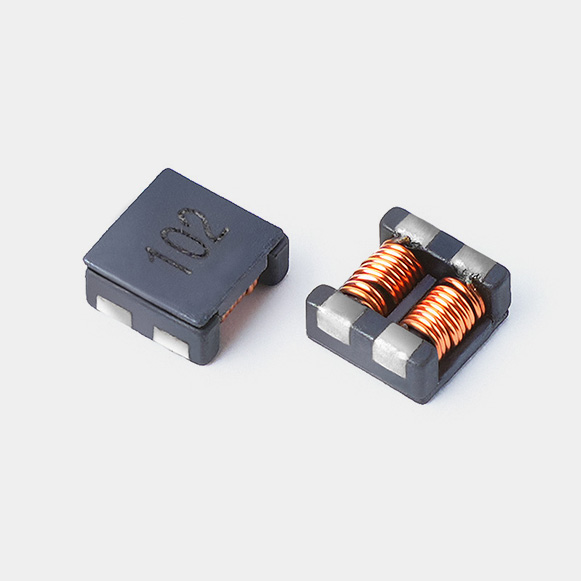

FCM4520 Common Mode Inductor

share
WeChat
QQ
copy Link
The 4520 common-mode inductor is a common electronic component, widely used in fields such as noise suppression in power adapters and EMI filtering. Its high impedance feature enables efficient suppression of common-mode noise. With a low profile, it is suitable for surface mount installation and high-density integration, making it a useful circuit filter.
Size Code 4520
L*W*H 5x4.5x2.35mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   FCM4520 Common Mode Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号阻抗直流电阻额定电流绝缘电阻工作电压下载
NumZDCRIDCIRRated Voltage
Download

( Ω ) at100MHz/0.1V( mΩ )( A )
( mΩ )( V )


MINTYPTYPMAXMAXMINMAX
FCM4520-900-R-S30908.7352
10501.pngFCM4520F-SERIES.PDF
FCM4520-151-R-S9015015.5401.910501.pngFCM4520F-SERIES.PDF
FCM4520-231-R-S18023017.7451.810501.pngFCM4520F-SERIES.PDF
FCM4520-301-R-S20030020.7451.710501.pngFCM4520F-SERIES.PDF
FCM4520-401-R-S30040023.8501.510501.pngFCM4520F-SERIES.PDF
FCM4520-701-R-S50070027.1591.410501.pngFCM4520F-SERIES.PDF
FCM4520-901-R-S65090034681.310501.pngFCM4520F-SERIES.PDF
FCM4520-102-R-S800100035.2681.210501.pngFCM4520F-SERIES.PDF
FCM4520-122-R-S1000120037751.110501.pngFCM4520F-SERIES.PDF
FCM4520-142-R-S120014006081110501.pngFCM4520F-SERIES.PDF


Package：1000pcs/r




|   FCM4520 Common Mode Inductor Size


A：5±0.5 mmB：4.5±0.5 mm
C：2.35MAX mmD：0.85±0.3 mm
E：2.7±0.1 mmF：1.2ref mm
G：1.25ref mm







|   FCM4520 Common Mode Inductor Winding







|   FCM4520 Common Mode Inductor Application

FCM4520 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
