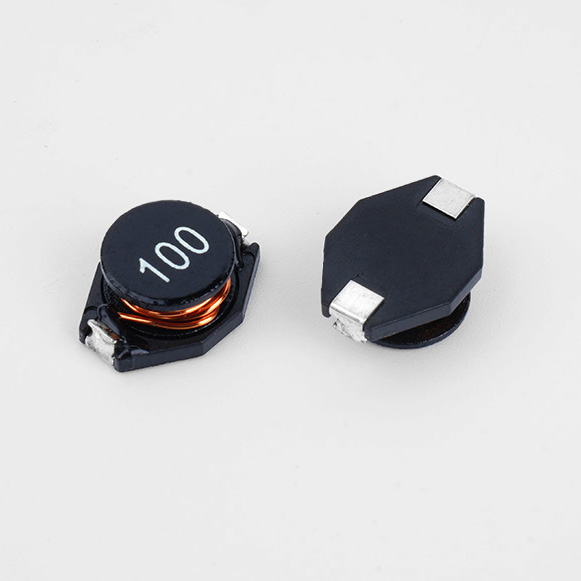

SFP3316F Power Inductor

型号	电感值	直流电阻	额定电流	自谐振频率	测试频率	下载
Num	L	DCR	IDC	SRF	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	MHz
	TYP	MAX	MAX	TYP
SFP3316F-1R0-R-S	1	9	9	100	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-1R5-R-S	1.5	10	8	90	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-2R2-R-S	2.2	12	7	80	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-3R3-R-S	3.3	15	6.4	65	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-4R7-R-S	4.7	18	5.4	45	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-6R8-R-S	6.8	27	4.6	38	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-100-R-S	10	38	3.8	30	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-150-R-S	15	46	3.0	27	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-220-R-S	22	85	2.6	19	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-330-R-S	33	100	2.0	15	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-470-R-S	47	140	1.6	12	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-680-R-S	68	200	1.4	10	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-101-R-S	100	280	1.2	9	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-151-R-S	150	400	1.0	6	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-221-R-S	220	610	0.8	5	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-331-R-S	330	1020	0.6	4.5	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-471-R-S	470	1270	0.5	3.5	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-681-R-S	680	2020	0.4	2.5	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-102-R-S	1000	3000	0.3	2	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-152-R-S	1500	4500	0.3	2	100KHz/0.1V	SFP3316F-SERIES.PDF
SFP3316F-332-R-S	3300	9000	0.29	1.7	100KHz/0.1V	SFP3316F-SERIES.PDF

Package：1000pcs/r

|   SFP3316F Power Inductor Size

|   SFP3316F Power Inductor Application

SFP3316F Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
