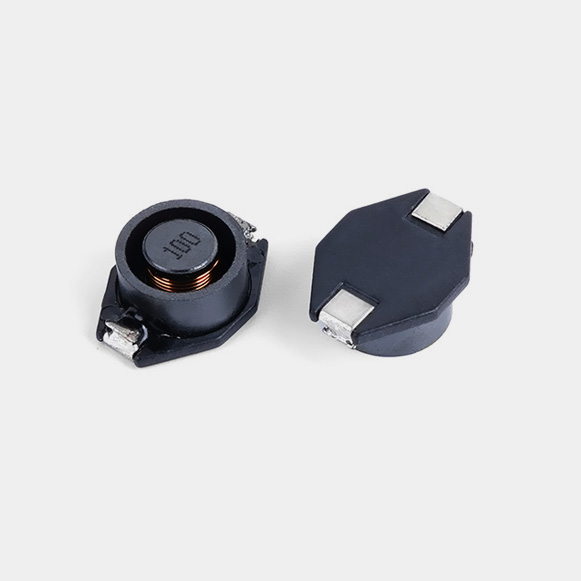

SFP3316C Power Inductor

型号	电感值	直流电阻	额定电流	自谐振频率	测试频率	下载
Num	L	DCR	IDC	SRF	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	MHz
	TYP	MAX	MAX	TYP
SFP3316C-1R0-R-S	1	21	5.6	140	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-1R5-R-S	1.5	22	5.2	120	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-2R2-R-S	2.2	32	5.0	80	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-3R3-R-S	3.3	39	3.9	70	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-4R7-R-S	4.7	54	3.2	40	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-6R8-R-S	6.8	75	2.8	38	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-100-R-S	10	101	.2.4	35	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-150-R-S	15	150	2.0	25	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-220-R-S	22	207	1.6	19	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-330-R-S	33	334	1.4	15	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-470-R-S	47	472	1.0	13	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-680-R-S	68	660	0.9	10	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-101-R-S	100	1110	0.8	7	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-151-R-S	150	1550	0.6	6	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-221-R-S	220	2000	0.5	5	100KHz/0.1V	SFP3316C-SERIES.PDF
SFP3316C-102-R-S	1000	8300	0.3	2	100KHz/0.1V	SFP3316C-SERIES.PDF

Package：1000pcs/r

|   SFP3316C Power Inductor Size

|   SFP3316C Power Inductor Application

SFP3316C Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
