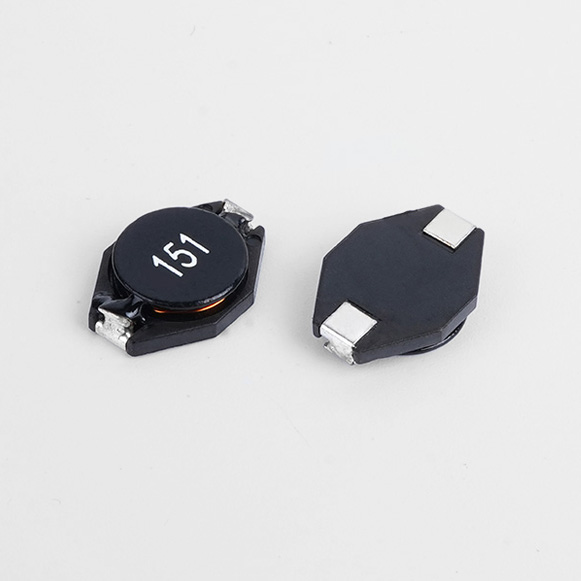

SFP3308F Power Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
SFP3308F-4R7M-R-S-LF	4.7	36	4.2	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-6R8M-R-S-LF	6.8	60	3.9	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-100M-R-S-LF	10	85	2.7	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-150M-R-S-LF	15	120	2.3	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-220M-R-S-LF	22	180	1.8	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-330M-R-S-LF	33	250	1.6	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-470M-R-S-LF	47	320	.13	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-680M-R-S-LF	68	540	1.1	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-101M-R-S-LF	100	690	0.87	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-151M-R-S-LF	150	940	0.74	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-221M-R-S-LF	220	1600	0.56	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-331M-R-S-LF	330	2150	0.5	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-471M-R-S-LF	470	3300	0.4	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-681M-R-S-LF	680	4400	0.33	100KHz/0.1V	SFP3308F-SERIES.PDF
SFP3308F-102M-R-S-LF	1000	7000	0.29	100KHz/0.1V	SFP3308F-SERIES.PDF

Package：1000pcs/r

|   SFP3308F Power Inductor Size

|   SFP3308F Power Inductor Application

SFP3308F Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
