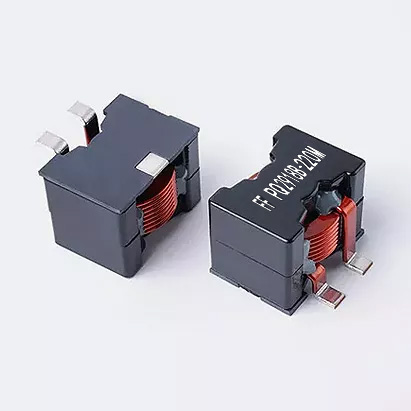

PQ3223J SMT high current inductor (produced by Fenfa Electronics) key features:
Designed for high voltage circuit environments
The core is painted, with a withstand voltage of over 500V
Large size, high current, inwardly curved foot
Size Code 3223
L*W*H 32x34.5x23mm
Bonding Pad 3
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ3223J High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH ) at 100KHz/1V( mΩ )( A )( A )


TYPMAXTYPMAX
PQ3223J-100K-R-S10 ±10%550451.png


Package：35pcs/tray

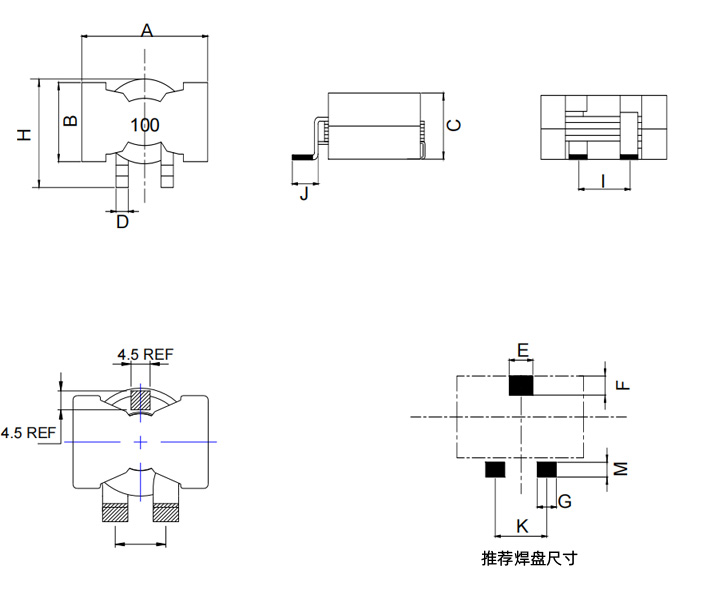

|   PQ3223J High Current Inductor Size

PQ3223J High Current Inductor L*W*H：33*32*18.5mm


A：32±1 mmB：22.5±1 mm
C：23MAX mmD：6.0±0.3 mm
E：6.0ref mmF：7.0ref mm
G：8.0ref mmH：34.5MAX mm
I：12±0.5 mmJ：3.8MIN mm
K：12ref mmM：6ref mm






|   PQ3223J High Current Inductor Winding







|   PQ3223J High Current Inductor Application

PQ3223J High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
