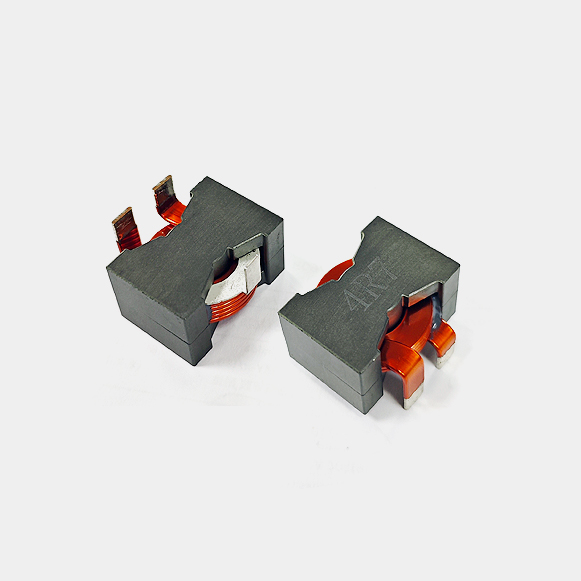

PQ3218 High Current Inductor

share
WeChat
QQ
copy Link
Size Code 3218
L*W*H 32x22.5x18.5mm
Bonding Pad 3个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ3218 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FREQ.Download

( μH )( mΩ )( A )( A )



TYPMAXTYPMAX

PQ3218-3R3M-R-S3.3 ±20%1.28070100KHz/1V1.pngPQ3218-3R3M-R-S.PDF
PQ3218-4R7M-R-S4.7 ±20%1.28070100KHz/1V1.pngPQ3218-3R3M-R-S.PDF


Package：35pcs/Tray

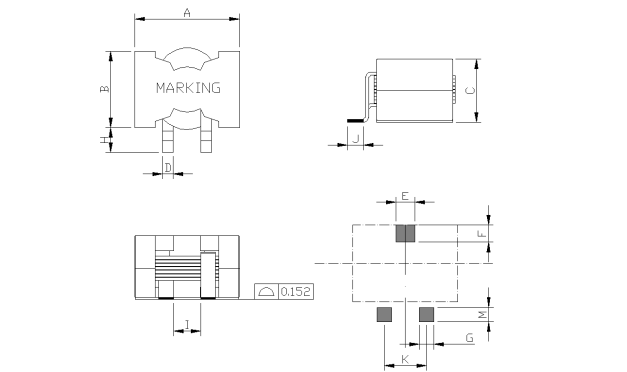

|   PQ3218 High Current Inductor Size

PQ3218 High Current Inductor L*W*H：32*22.5*18.5mm


A：32.0 ± 1.0 mmB：22.5±1 mm
C：18.5 ± 0.5 mmD：6.0±0.3 mm
E：6.0 ref mmF：6.0 ref mm
G：6.0 refmmH：7.5 ± 1.0 mm
I：6.0 ± 0.5 mmJ：3.8 min mm
K：12.0 ref mmM：6.0 ref






|   PQ3218 High Current Inductor Winding







|   PQ3218 High Current Inductor Application

PQ3218 High Current Inductor is


widely used in energy storage devices, automotive power supplies, AI server power supplies,

electric vehicles, tractors, and communication equipment.
