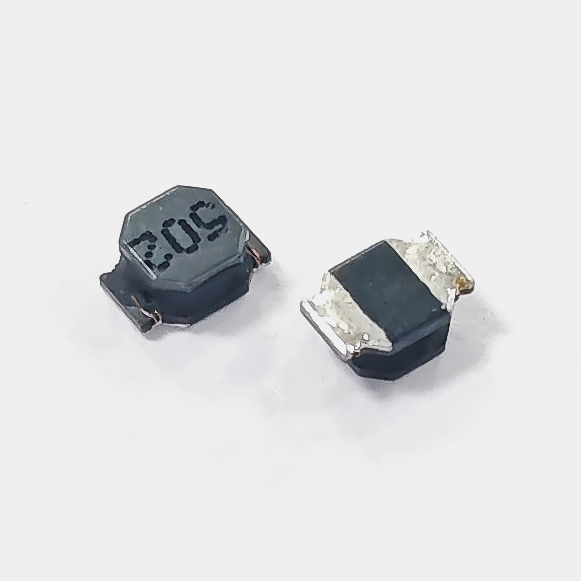

SFH319 NR Inductor

share
WeChat
QQ
copy Link
Size Code 319
L*W*H 4.5x3.3x1.95mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SFH319 NR Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻测试频率下载
NumLDCRTEST FRAQDownload

( mH ) ( Ω )


TYPTYP

SFH319-302M-R-S342±20%1KHz/0.25V
SFH319-502M-R-S560±20%1KHz/0.25V1.png‍SFH319-502M-R-S‍.PDF
SFH319-153M-R-S15140±20%1KHz/0.25V
SFH319-203M-R-S20180±20%1KHz/0.25V1.pngSFH319-203M-R-S.PDF


Package：3000pcs/r




|   SFH319 NR Inductor Size


A：4.5±0.2 mmB：3.3±0.2 mm
C：1.95±0.2 mmD：3.3±0.2 mm
E：1.35±0.2 mmF：1.8±0.2 mm
G：2.3±0.2 mmH：3.5ref mm
I：1.8ref mmJ：1.5ref mm








|   SFH319 NR Inductor Application

SFH319 NR Inductor is widely used   in consumer electronics, small household appliances, power converters, electric bicycles, wireless communication, switching power supplies, etc.
