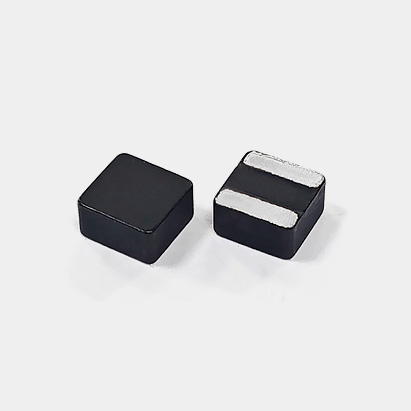

SC303010B Molded Power Inductor-Small size
share
SC303010B Series Mini Molded Inductors (Produced by Fenfa Electronics) Technical Highlights:
- Wound with flat wire and hot-pressed into a single unit
- Custom-developed metal powder formulation for high performance
- Uniform spray coating, available in black and gray
- Wound with flat wire and hot-pressed into a single unit
- Custom-developed metal powder formulation for high performance
- Uniform spray coating, available in black and gray
Detail
| SC303010B Molded Power Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 | |||
| Num | L | DCR | Isat | Irms | Download | |||
| ( μH ) at 1MHz/1V | ( mΩ ) | ( A ) | ( A ) | |||||
| ±20% | TYP | MAX | TYP | MAX | TYP | MAX | ||
| SC303010B-1R0M-R-S | 1 | 25 | 30 | 6 | 5.6 | 7 | 6.5 |  |
| SC303010B-2R2M-R-S | 2.2 | 55 | 66 | 4 | 3.5 | 5 | 4.5 | |
| SC303010B-3R3M-R-S | 3.3 | 86 | 102 | 3.1 | 2.8 | 3.4 | 3 | |
| SC303010B-4R7M-R-S | 4.7 | 120 | 140 | 2.7 | 2.3 | 3.2 | 2.8 | |
| SC303010B-6R8M-R-S | 6.8 | 225 | 270 | 1.8 | 1.5 | 2.1 | 1.8 | |
| SC303010B-100M-R-S | 10 | 250 | 275 | 1.8 | 1.5 | 2.2 | 2 | |
Package：3000pcs/r
| SC303010B Molded Power Inductor Size
| A：3±0.2 mm | B：3±0.2 mm |
| C：1MAX mm | D：1±0.2 mm |
| E：1±0.2 mm | f：0.9typ mm |
| g：3typ mm | h：3typ mm |
| SC303010B Molded Power Inductor Application
SC303010B Molded Power Inductor is Widely used in DC/DC converters, tablets, smart phones, portable gaming devices, smart wearables, Wi-Fi modules, laptops, VR, AR, LCD displays, HDDs, DVCs, DSCs, baseband power supplies, amplifiers, power management, module power supplies, camera power supplies, etc.
