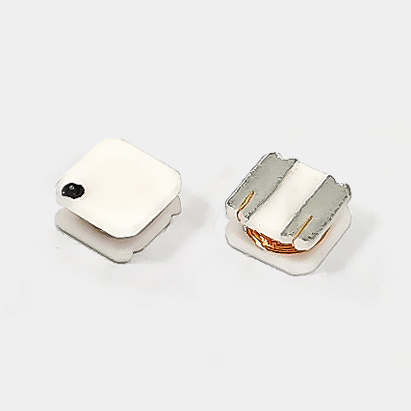

FN3015 Ceramic Coil
share
Technical highlights of the FN3015 series ceramic coils (produced by Fenfa Electronics):
Designed as the core driving component for micro fans
Higher height and resistance value, please select according to the desired rotational speed
Surface mount installation, reducing labor costs
Designed as the core driving component for micro fans
Higher height and resistance value, please select according to the desired rotational speed
Surface mount installation, reducing labor costs
Detail
| FN3015 Ceramic Coil Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 圈数 | 下载 |
| Num | L | DCR | Turns | DOWLOAD |
| ( μH ) at 100KHz/1V | ( Ω ) | ( Ts ) | ||
| TYP | TYP | |||
| FN3015-620K-R-S | 62 | 16±1 | 310 |  |
Package：2000pcs/r
| FN3015 Ceramic Coil Size
| A：3±0.07 mm | B：3±0.07 mm |
| C：1.4±0.1 mm | D：0.3±0.05 mm |
| E：1typ mm | F：2.98typ mm |
| FN3015 Ceramic Coil Application
FN3015 Ceramic Coil is Widely used in micro fans for VR glasses, ultra-thin fans for laptops, micro blowers for drones, and cooling fans for projectors, etc.
