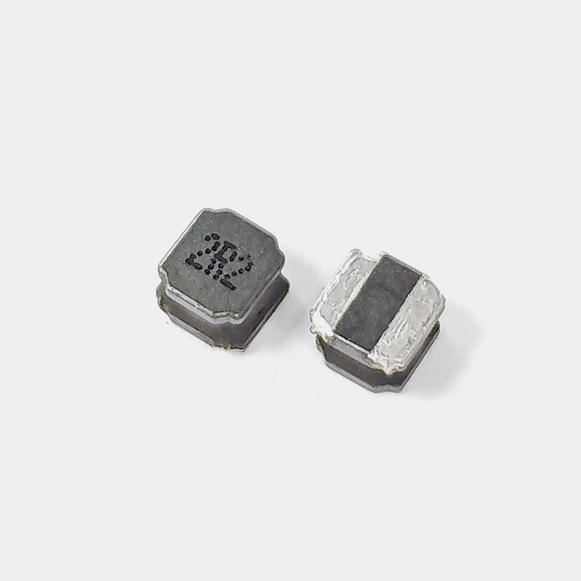

SFNR3012 NR Inductor
share
SFNR3012 series NR Power inductor (produced by Fenfa Electronics) key features:
Ultra low profile 1.2mm height, compact NR shielded package.
Low flux leakage, effectively suppress EMI interference on dense PCB.
Stable inductance, rated saturation & thermal current for low/medium current DC-DC rails.
Test condition @100KHz/0.25V, compatible with reflow soldering.
Multiple inductance options for slim consumer & portable electronics.
Ultra low profile 1.2mm height, compact NR shielded package.
Low flux leakage, effectively suppress EMI interference on dense PCB.
Stable inductance, rated saturation & thermal current for low/medium current DC-DC rails.
Test condition @100KHz/0.25V, compatible with reflow soldering.
Multiple inductance options for slim consumer & portable electronics.
Detail
| SFNR3012 NR Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 测试频率 | 下载 |
| Num | L | DCR | Isat | TEST FRAQ | Download |
| ( μH ) | ( mΩ ) | ( A ) | |||
| TYP | MAX | TYP | |||
| SFNR3012-1R0M-R-S | 1.0 | 52 | 1.9 | 100KHz/0.25V |  SFNR3012-SERIES.PDF |
| SFNR3012-6R8M-R-S | 6.8 | 247 | 0.75 | 100KHz/0.25V | SFNR3012-SERIES.PDF |
| SFNR3012-100M-R-S | 10 | 345 | 0.6 | 100KHz/0.25V | SFNR3012-SERIES.PDF |
Package：2000pcs/r
| SFNR3012 NR Inductor Size
| A：3.0±0.3 mm | B：3.0±0.3 mm |
| C：1.2MAX mm | D：1.5ref mm |
| E：2.5ref mm | F：0.8ref mm |
| G：1.5ref mm | H：2.7ref mm |
| SFNR3012 NR Inductor Application
SFNR3012 NR Inductor is
It is widely used in consumer electronics, small household appliances, power converters,
electric vehicles, wireless communication, switching power supplies, etc.
