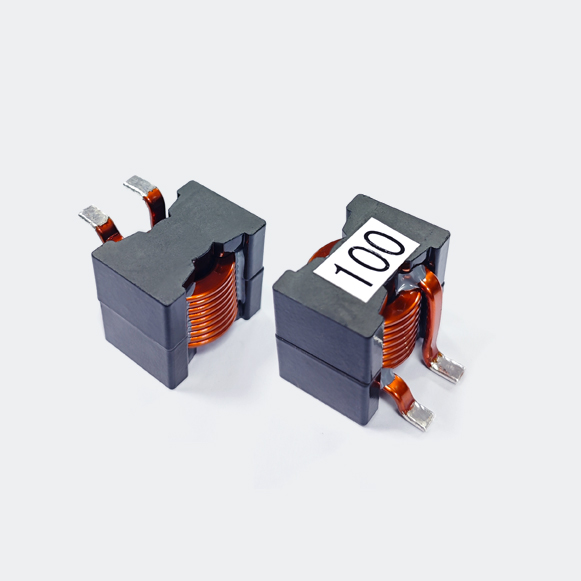

PQ2925 High Current Inductor

share
WeChat
QQ
copy Link
Size Code 2925
L*W*H 28.5x20.5x25mm
Bonding Pad 3个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ2925 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FREQ.Download

( μH )( mΩ )( A )( A )




MAXMAXMAX

PQ2925-100M-B-S10±20%1.94040100KHz/1V1.pngPQ2925-100M-B-S.PDF


Package：35pcs/tray




|   PQ2925 High Current Inductor Size

PQ2918B High Current Inductor L*W*H：28.5*30*25mm，Flatness<0.15mm


A：28.5MAX mmB：20.5MAX mm
C：25MAX mmD：4.0±0.3 mm
H：8.5±1 mmI：7.5±0.5 mm
J：5±0.5 mm







|   PQ2925 High Current Inductor Application

PQ2925 High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
