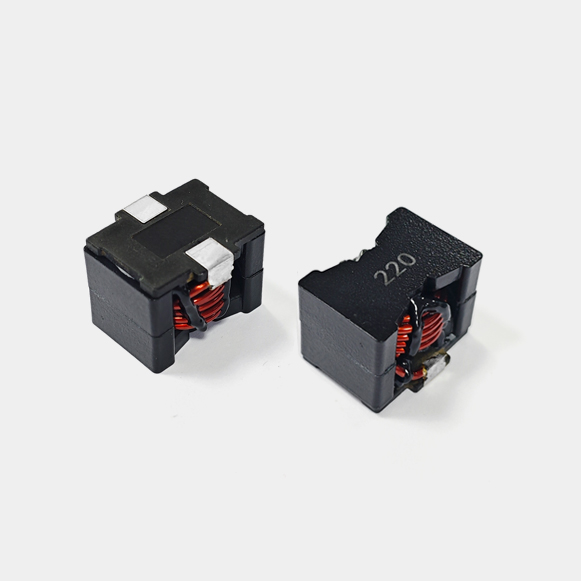

PQ2920BD High Current Inductor

share
WeChat
QQ
copy Link
Size Code 2920
L*W*H 28.0x25.0x20.5mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ2920BD High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FREQ.Download

( μH )( mΩ )( A )( A )




MAXMAXMAX

PQ2920BD-220M-B-S22±20%5.3921.724100KHz/0.1V1.pngPQ2920BD-SERIES.PDF
PQ2920BD-331M-B-S330±20%77.54.36.1100KHz/0.1V1.pngPQ2920BD-SERIES.PDF


Package：35pcs/tray




|   PQ2920BD High Current Inductor Size

PQ2918BD High Current Inductor L*W*H：28*25*20.5mm，Flatness<0.15mm


A：28MAX mmB：25MAX mm
C：20.5MAX mmD：6.0±0.3 mm
E：6.0±0.3 mmF：10±0.3mm
G：11±0.5 mm







|   PQ2920BD High Current Inductor Application

PQ2920BD High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
