PQ2920B High Current Inductor
share

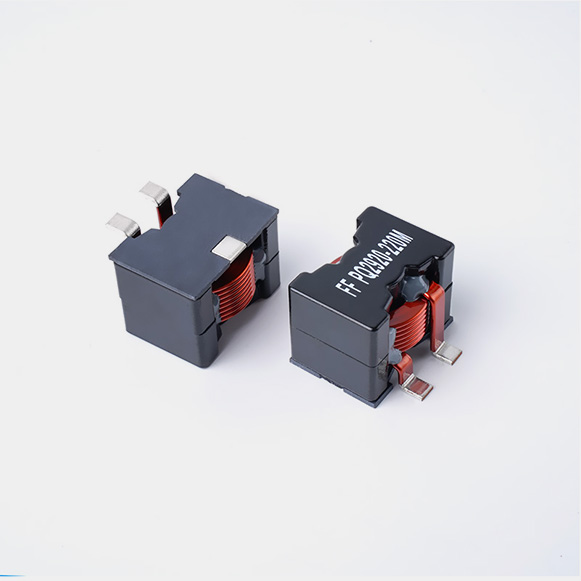

PQ2920B series surface mount high current inductors (produced by Fenfa Electronics) key features:
Designed for high voltage circuit environments
The core is painted, with a withstand voltage of over 500V
Higher current, lower resistance, lower loss
The surface mounting flatness is good, < 0.15mm
Designed for high voltage circuit environments
The core is painted, with a withstand voltage of over 500V
Higher current, lower resistance, lower loss
The surface mounting flatness is good, < 0.15mm
Detail
| PQ2920B High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 测试频率 | 下载 |
| Num | L | DCR | Isat | Irms | TEST FREQ. | Download |
| ( μH ) | ( mΩ ) | ( A ) | ( A ) | |||
| MAX | MAX | MAX | ||||
| PQ2920B-6R8M-B-S | 6.8±20% | 3.5 | 40 | 37 | 100KHz/1V |  PQ2920B-220M-B-S.PDF |
| PQ2920B-100M-B-S | 10±20% | 3.5 | 35 | 37 | 100KHz/1V | PQ2920B-100M-B-S.PDF |
| PQ2920B-120M-B-S | 12±20% | 3.5 | 30 | 37 | 100KHz/1V | PQ2920B-220M-B-S.PDF |
| PQ2920B-220M-B-S | 22±20% | 3.5 | 16 | 37 | 100KHz/1V | PQ2920B-220M-B-S.PDF |
| PQ2920B-330M-B-S | 33±20% | 4.5 | 10 | 18 | 100KHz/1V | PQ2920B-220M-B-S.PDF |
| PQ2920B-470M-B-S | 47±20% | 4.5 | 10 | 18 | 100KHz/1V | PQ2920B-220M-B-S.PDF |
Package：35pcs/tray
| PQ2920B High Current Inductor Size
PQ2918B High Current Inductor L*W*H：28.5*28*21.5mm，Flatness<0.15mm
| A：28.5MAX mm | B：20.5MAX mm |
| C：21.5MAX mm | D：4.0±0.3 mm |
| E：6.0ref mm | F：6.0ref mm |
| G：6.0ref mm | H：6.5±1 mm |
| I：6.6±0.5 mm | K：10.43ref mm |
| M：6.0ref mm | J：3.8±0.5 mm |
| PQ2920B High Current Inductor Winding
| PQ2920B High Current Inductor Applicatio
PQ2920B High Current Inductor is Widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
