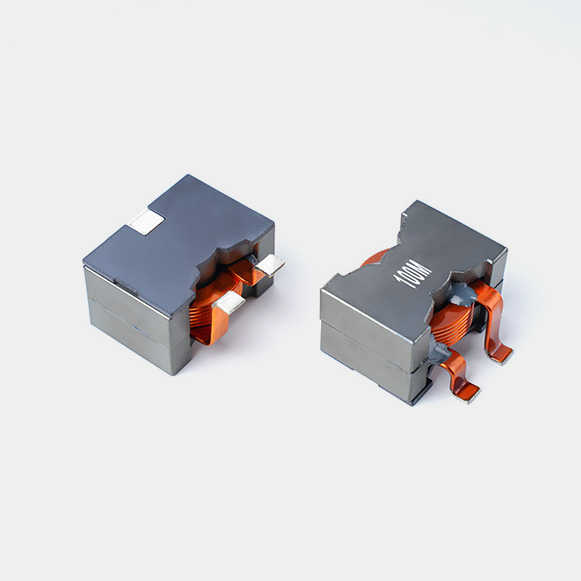

PQ2918B High Current Indutor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	自谐振频率	下载
Num	L	DCR		Isat	Irms	TEST FREQ.	SRF	Download
	( μH )	( mΩ )		( A )	( A )		MHz
	TYP	TYP	MAX	MAX	MAX		TYP
PQ2918B-3R3M-B-S	3.3	2.37	2.58	94	30	100KHz/0.1V	40	PQ2918B-SERIES.PDF
PQ2918B-4R7M-B-S	4.7	2.37	2.58	65	30	100KHz/0.1V	30	PQ2918B-SERIES.PDF
PQ2918B-6R8M-B-S	6.8	2.37	2.58	48	30	100KHz/0.1V	25	PQ2918B-SERIES.PDF
PQ2918B-100M-B-S	10	2.37	2.58	33	30	100KHz/0.1V	20	PQ2918B-SERIES.PDF
PQ2918B-150M-B-S	15	2.37	2.58	24	30	100KHz/0.1V	16	PQ2918B-SERIES.PDF
PQ2918B-220M-B-S	22	2.37	2.58	15	30	100KHz/0.1V	15	PQ2918B-SERIES.PDF
PQ2918B-330M-B-S	33	2.37	2.58	10.5	30	100KHz/0.1V	10	PQ2918B-SERIES.PDF

Package：35pcs/tray

|   PQ2918B High Current Indutor Size

PQ2918B High Current Inductor L*W*H：28*19.7*18.5mm，Flatness<0.15mm

|   PQ2918B High Current Indutor Winding

|   PQ2918B High Current Indutor Application

PQ2918B High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
