PQ2917B High Current Inductor

share
WeChat
QQ
copy Link

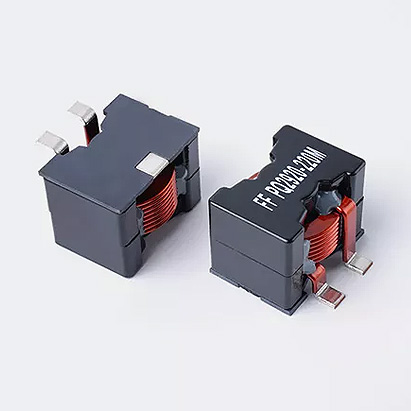

PQ2917B series SMT high current inductors (produced by Fenfa Electronics) key features:
Designed for low inductance and high current applications
Offer advantages such as high current, low resistance, and low loss
The surface mounting flatness is good, with a deviation of less than 0.15mm
Size Code 2917
L*W*H 27.9x27.2x17.8mm
Bonding Pad 3
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ2917B High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH ) at 100KHz/0.1V( mΩ )( A )( A )


TYPMAXMAXMAX


Package：35pcs/tray




|   PQ2917B High Current Inductor Size

PQ2917B High Current Inductor L*W*H：27.9*27.2*17.8mm，Flatness<0.15mm


A：27.9MAX mmB：19.7MAX mm
C：17.8MAX mmD：3.8±0.3 mm
E：6.0ref mmF：6.0ref mm
G：4.0ref mmH：6.5±1 mm
I：6.63±0.5 mmK：10.43ref mm
M：3.8ref mmJ：3.8±0.5 mm






|   PQ2917B High Current Inductor Winding







|   PQ2917B High Current Inductor Application

PQ2917B High Current Inductor is Widely used in digital power amplifier filtering, PFC boost, DC-DC converter, tractors, digital power amplifiers, high-power power modules, PFC boost, communication equipment
