PQ2914 High Current Inductor

share
WeChat
QQ
copy Link
PQ2914 series SMT high current inductor (produced by Fenfa Electronics) key features:
Designed for highly constrained circuit environments
Flat copper wire, high current capacity, low resistance value
Size Code 2914
L*W*H 28x27.2x14mm
Bonding Pad 3
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ2914 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH ) at 100KHz/V( mΩ )( A )( A )


TYPMAXMAXMAX


Package：35pcs/tray

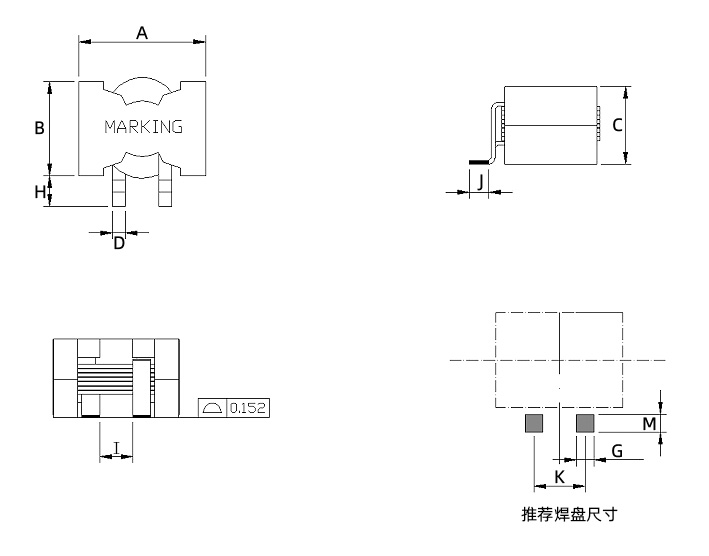

|   PQ2914 High Current Inductor Size

PQ2914 High Current Inductor L*W*H：28*27.2*14mm，Flatness<0.15mm


A：28MAX mmB：19.7MAX mm
C：14MAX mmH：6.5±1 mm
I：6.6±0.5 mmJ：3.8min mm
K：10.43ref mmM：6.0ref mm
G：6.0ref mm






|   PQ2914 High Current Inductor Application

PQ2914 High Current Inductor is Widely used in energy storage devices, inverter control boards, automotive power supplies, AI server power supplies, and electric vehicles.
