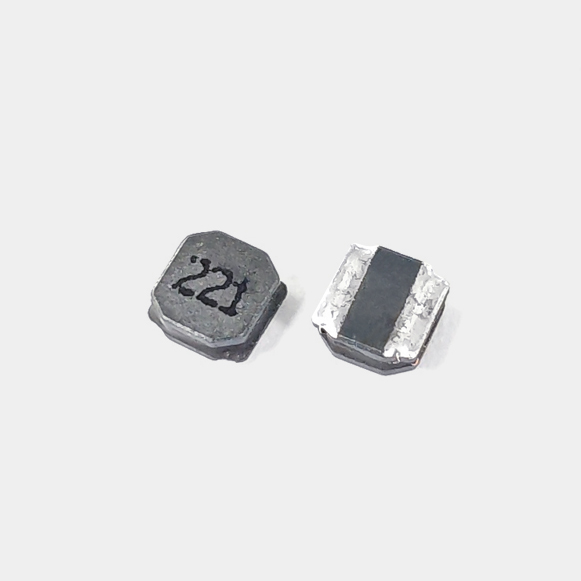

SFNR252012 NR Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	TYP	TYP
SFNR252012-R33M-R-S	0.33	31	4	3.35	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-R47M-R-S	0.47	61	3.82	2.15	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-R68M-R-S	0.68	74	3.28	1.95	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-1R0M-R-S	1	90	2.59	1.93	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-1R5M-R-S	1.5	147	2.24	1.4	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-2R2M-R-S	2.2	216	1.85	1.15	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-3R3M-R-S	3.3	264	1.61	1.04	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-4R7M-R-S	4.7	377	1.12	0.84	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-5R6M-R-S	5.6	538	1.11	0.73	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-6R8M-R-S	6.8	581	0.98	0.69	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-8R2M-R-S	8.2	658	0.98	0.65	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-100M-R-S	10	690	0.79	0.62	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-150M-R-S	15	1591	0.68	0.42	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-220M-R-S	22	1976	0.53	0.38	100KHz/0.25V	SFNR252012-SERIES.PDF
SFNR252012-470M-R-S	47	2400	0.35	0.33	100KHz/0.25V	SFNR252012-SERIES.PDF

Package：2000pcs/r

|   SFNR252012 NR Inductor Size

|   SFNR252012 NR Inductor Application

SFNR252012 NR Inductor is widely used in consumer electronics, small household appliances, power converters, electric vehicles, wireless communication, switching power supplies, etc.
