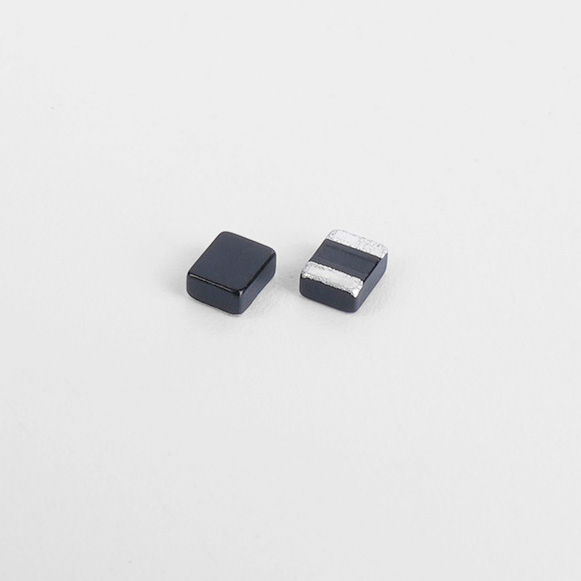

SC252012B Molded Power Inductor

型号	电感值	直流电阻		饱和电流	温升电流	测试频率	下载
Num	L	DCR		Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )		( A )	( A )
	TYP	TYP	MAX	TYP	TYP
SC252012B-R22M-R-S	0.22	14	15	8.4	6	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-R33M-R-S	0.33	13	16	7.5	5	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-R47M-R-S	0.47	16	22	6	4.7	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-R68M-R-S	0.68	24	29	5.8	4.5	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-1R0M-R-S	1	38	43	4.5	3.4	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-1R5M-R-S	1.5	48	60	3.7	3.6	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-2R2M-R-S	2.2	65	87	3.2	2.3	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-3R3M-R-S	3.3	118	140	2.6	1.9	1MH.z/1V	SC252012B-SERIES.PDF
SC252012B-4R7M-R-S	4.7	148	170	1.9	1.6	1MHz/1V	SC252012B-SERIES.PDF
SC252012B-100M-R-S	10	360	420	1.5	1.2	1MHz/1V	SC252012B-SERIES.PDF

Package：3000pcs/r

|   SC252012B Molded Power Inductor Size

|   SC252012B Molded Power Inductor Application

SC252012B Molded Power Inductor is widely used in consumer electronics, wireless headphones, smart watches, hard drives, mobile satellite communications, tablets, etc.
