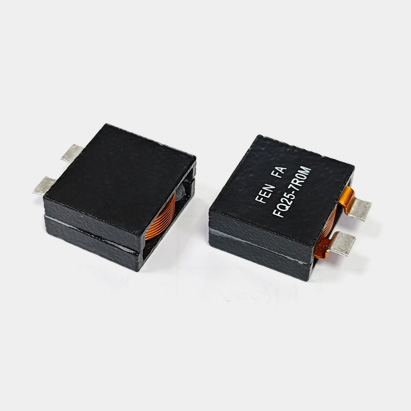

FQ25 High Current Inductor
share
PQ25 series SMT high current inductors (produced by Fenfa Electronics) key features:
Designed for use in Height Limited circuits/circuit boards with limited holes for mounting
Offer advantages such as high current capacity, low resistance, low loss, and low continuous operating temperature
Painted core, with withstand voltage above 500V
Good consistency in the flatness of the surface mount, <0.15mm
Designed for use in Height Limited circuits/circuit boards with limited holes for mounting
Offer advantages such as high current capacity, low resistance, low loss, and low continuous operating temperature
Painted core, with withstand voltage above 500V
Good consistency in the flatness of the surface mount, <0.15mm
Detail
| FQ25 High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 |
| Num | L | DCR | Isat | Irms | Download |
| ( μH ) at 100KHz/1V | ( mΩ ) | ( A ) | ( A ) | ||
| TYP | MAX | MAX | MAX | ||
| FQ25-7R0M-B-T1 | 7.0 | 4.0 | 25 | 40 |  |
Package：35pcs/tray

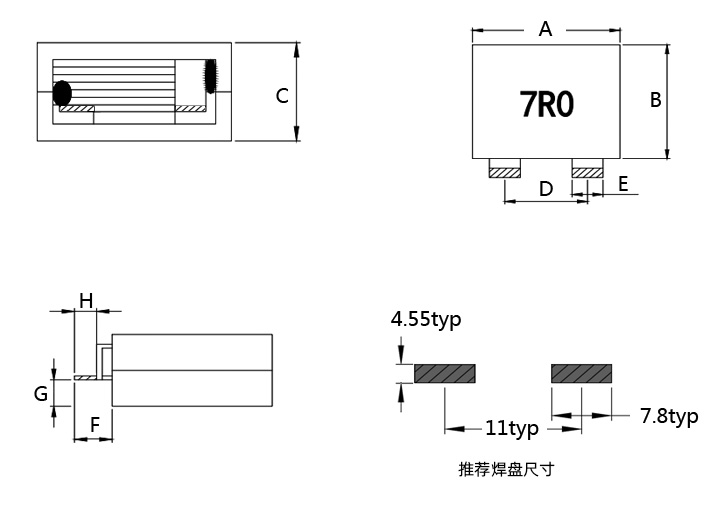

| FQ25 High Current Inductor Size
FQ25 High Current Inductor L*W*H：25*22*11mm，Flatness<0.15mm
| A：25±0.5 mm | B：22±0.5 mm |
| C：11±0.5 mm | D：11±0.5 mm |
| E：5.5±0.5 mm | F：5.7±0.5 mm |
| G：5.0±0.5 mm | H：3.5±0.5 mm |
| FQ25 High Current Inductor Application
FQ25 High Current Inductor is Widely used in recessed PCB circuits, PFC boost, DC-DC converters, tractors, digital amplifiers, high-power power modules, PFC boost, communication equipment
