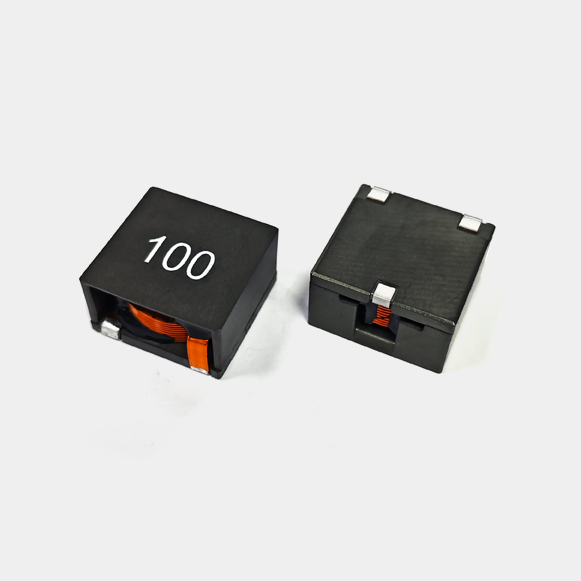

ST2112 High Current Inductor

share
WeChat
QQ
copy Link
Size Code 2112
L*W*H 21.7X21.5X12.5mm
Bonding Pad 3个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   ST2112 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FREQ.Download

( μH )( mΩ )( A )( A )



TYPMAXMAXMAX

ST2112M-6R8M-R-S6.83.82622100KHz/0.1V1.pngST2112-SERIES.PDF
ST2112M-100M-R-S10622.517.5100KHz/0.1V1.pngST2112-SERIES.PDF


Package：120pcs/r




|   ST2112 High Current Inductor Size

ST2112 High Current Inductor L*W*H：21.7*21.5*12.5mm，Flatness<0.15mm


A：21.7MAX mmB：21.5MAX mm
C：12.5MAX mmD：3.0±0.3 mm
E：2.3min mmF：14.5±0.5 mm
G：2.5ref mmH：2.4ref mm
J：4ref mmJ2：4ref mm
K：5ref mmK2：4ref mm
L：14.5ref mmM：17.5ref mm








|   ST2112 High Current Inductor Winding







|   ST2112 High Current Inductor Application

ST2112 High Current Inductor is Widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
