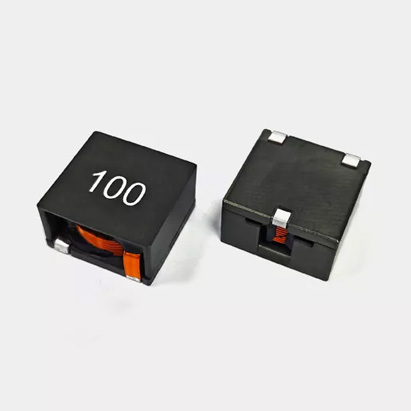

ST2110 High Current Inductor

share
WeChat
QQ
copy Link
Flat wire winding
Low DCR resistance, overall lower height
Good flatness, high reliability of lead patching
Magnetic shielding design is adopted to reduce electromagnetic interference
Size Code 2110
L*W*H 21.7x21.5x10.6mm
Bonding Pad 3
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   ST2110 High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.



型号电感值直流电阻饱和电流温升电流下载
NumLDCRIsatIrmsDownload

( μH ) at 100KHz/0.1V( mΩ )(A)(A)

TYPMAXMAXMAX
ST2110M-6R8M-R-S11.47040
ST2110M-100M-R-S

1.5

1.45240
ST2110M-150M-R-S2.21.846
34
ST2110M-240M-R-S3.32.237
28



Package：120pcs/r




|   ST2110 High Current Inductor Size

ST2110 High Current Inductor L*W*H：21.7*21.5*10.6mm，Flatness<0.15mm



A：21.7MAX mmB：21.5MAX mm
C：10.6MAX mmD：3.0±0.3 mm
E：2.3min mmF：14.5±0.5 mm
G：2.5ref mmH：2.4ref mm
J：4ref mmJ2：4ref mm
K：5ref mmK2：4ref mm
L：14.5ref mmM：17.5ref mm







|   ST2110 High Current Inductor Winding





|   ST2110 High Current Inductor Application

ST2110 High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
