PQ2015B High Current Inductor
share
Technical highlights of the PQ2015B series high-current inductors (produced by Fenfa Electronics):
Designed for DC-DC Converters and PFC circuits
Flat coils or round wire coils, firmly attached by soldering
High saturation current, low resistance DCR, low loss
Designed for DC-DC Converters and PFC circuits
Flat coils or round wire coils, firmly attached by soldering
High saturation current, low resistance DCR, low loss
Detail
| PQ2015B High Current Inductor Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 饱和电流 | 温升电流 | 下载 |
| Num | L | DCR | Isat | Irms | Download |
| ( μH ) at 100K/0.1V | ( mΩ ) | ( A ) | ( A ) | ||
| TYP | MAX | MAX | MAX | ||
| PQ2015B-3R3M-R-S | 3.3 | 11.5 | 98.1 | 12.5 | |
| PQ2015B-2R2M-R-S | 4.7 | 11.5 | 68.9 | 12.5 | |
| PQ2015B-2R7M-R-S | 6.8 | 11.5 | 47.6 | 12.5 | |
| PQ2015B-3R1M-R-S | 10 | 11.5 | 32.4 | 12.5 | |
| PQ2015B-4R7M-R-S | 15 | 11.5 | 21.6 | 12.5 | |
| PQ2015B-6R8M-R-S | 22 | 11.5 | 14.7 | 12.5 | |
| PQ2015B-100M-R-S | 33 | 11.5 | 9.8 | 12.5 |
Package：100pcs/r

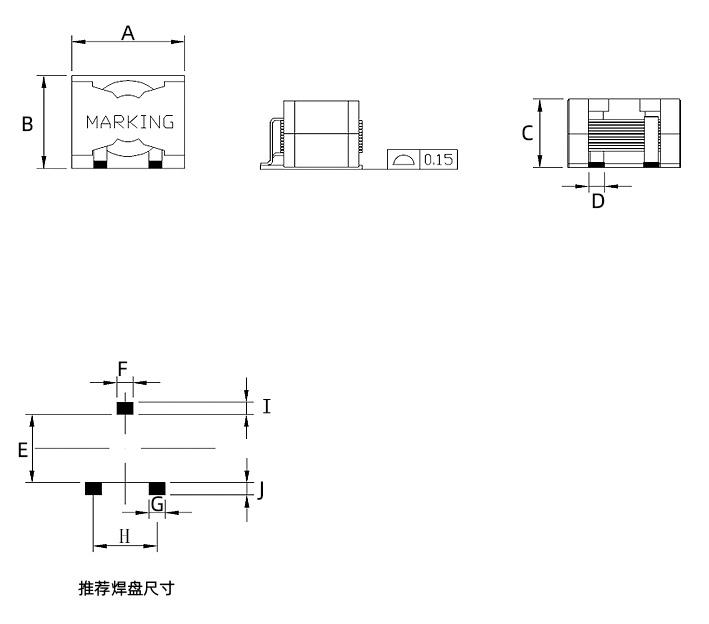

| PQ2015B High Current Inductor Size
PQ2015B High Current Inductor L*W*H：21.8*22.5*14.5mm，Flatness<0.15mm
| A：21.8MAX mm | B：19MAX mm |
| C：15.8MAX mm | D：3±0.2 mm |
| E：12.5ref mm | F：5ref mm |
| G：5ref mm | H：8.5ref mm |
| I：5ref mm | J：5ref mm |
| PQ2015B High Current Inductor Winding
| PQ2015B High Current Inductor Application
PQ2015B High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
