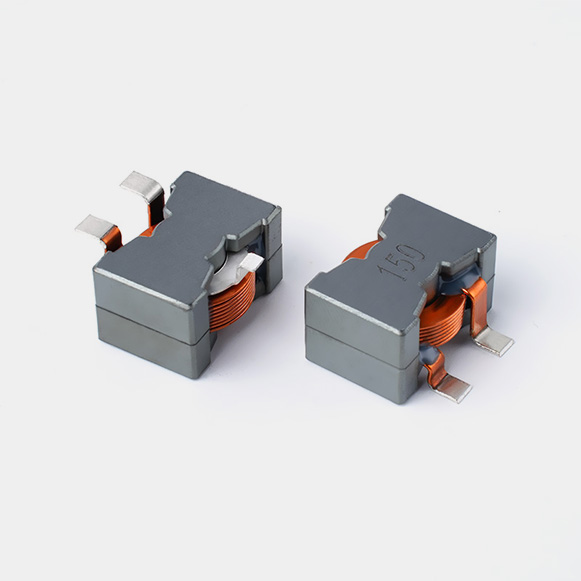

PQ2014J High Current Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FREQ.	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	MAX	MAX
PQ2014J-1R0M-R-S	1	2.3	65	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-2R2M-R-S	2.2	2.3	55	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-2R7M-R-S	2.7	2.3	48	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-3R1M-R-S	3.1	2.3	48	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-4R7M-R-S	4.7	2.3	32	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-6R8M-R-S	6.8	2.3	23	28	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-100M-R-S	10	7	23	18	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-150M-R-S	15	9.5	18	16	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-220M-R-S	22	9.5	13	16	100KHz/0.1V	PQ2014J-SERIES.PDF
PQ2014J-330M-R-S	33	9.5	9	16	100KHz/0.1V	PQ2014J-SERIES.PDF

Package：100pcs/r

|   PQ2014J High Current Inductor   Size

PQ2014J High Curent Inductor L*W*H：21.8*22.5*14.5mm，Flatness<0.15mm

|   PQ2014J High Current Inductor Winding

|   PQ2014J High Current Inductor Application

PQ2014J High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
