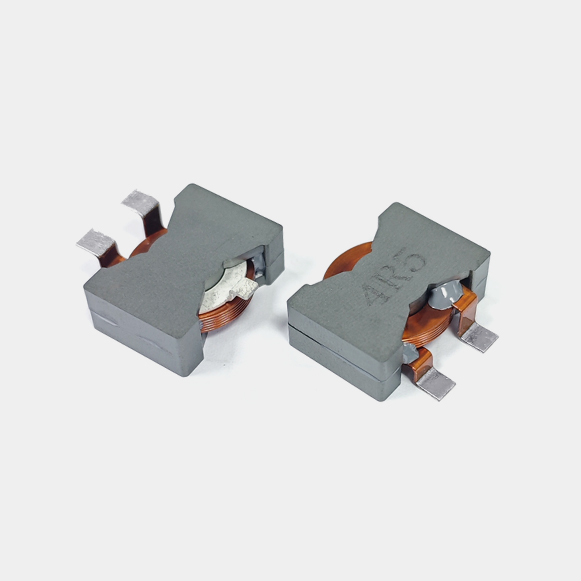

PQ2007J High Current Inductor

share
WeChat
QQ
copy Link
Size Code 2007
L*W*H 21x22.5x7.3mm
Bonding Pad 3个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   PQ2007J High Current Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FREQ.Download

( μH )( mΩ )( A )( A )



TYPMAXTYPTYP

PQ2007J-4R5M-R-S4.5 ±20%72016100KHz/1V1.pngPQ2007J-4R5M-R-S.PDF
PQ2007J-6R8M-R-S6.8 ±20%71416100KHz/1V1.pngPQ2007J-6R8M-R-S.PDF


Package：100pcs/r




|   PQ2007J High Current Inductor Size

PQ2007J High Current Inductor L*W*H：21*22.5*7.3mm，Flatness<0.15mm


A：21.0MAX mmB：22.5MAX mm
C：7.3MAX mm

D：3.2±0.2   mm

E：3.2±0.5 mmF：8±0.5 mm
G：2.0±0.5 mmH：5.0ref mm
I：2.5±0.2 mmJ：14±0.5 mm







|   PQ2007J High Current Inductor Winding







|   PQ2007J High Current Inductor Application

PQ2007J High Current Inductor is widely used in energy storage devices, automotive power supplies, AI server power supplies, electric vehicles, tractors, and communication equipment.
