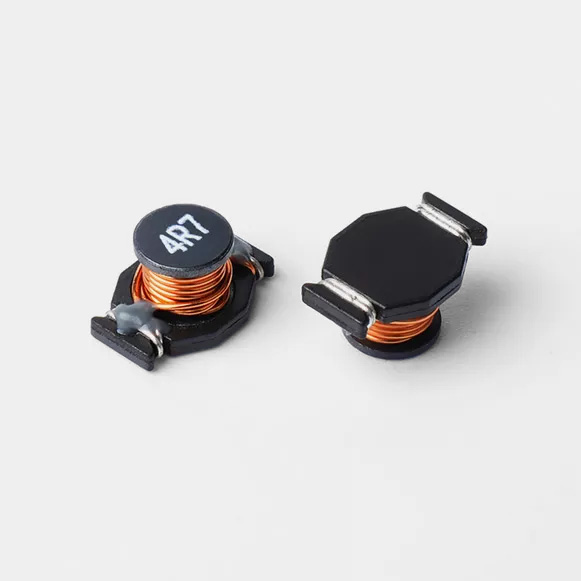

SFG1813 Power Inductor

型号	电感值	直流电阻	额定电流	测试频率	下载
Num	L	DCR	IDC	TEST FRAQ	Download
	( μH )	( mΩ )	( A )
	TYP	MAX	MAX
SFG1813HC-R56M-R-S-LF	0.56	10	7.7	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-1R2M-R-S-LF	1.2	17	5.3	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-2R2M-R-S-LF	2.2	35	3.5	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-3R3M-R-S-LF	3.3	40	3	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-4R7M-R-S-LF	4.7	54	2.6	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-6R8M-R-S-LF	6.8	80	2.2	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-100M-R-S-LF	10	111	1.9	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-150M-R-S-LF	15	170	1.5	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-220M-R-S-LF	22	250	1.2	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-330M-R-S-LF	33	350	0.99	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-470M-R-S-LF	47	470	0.87	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-680M-R-S-LF	68	730	0.68	100KHz/0.25V	SFG1813-SERIES.PDF
SFG1813HC-101M-R-S-LF	100	1110	0.53	100KHz/0.25V	SFG1813-SERIES.PDF

Package：1000pcs/r

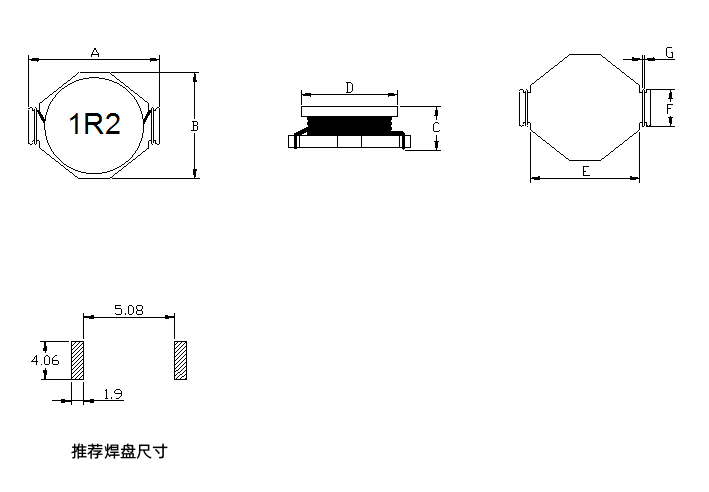

|   SFG1813 Power Inductor Size

|   SFG1813 Power Inductor Application

SFG1813 Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
