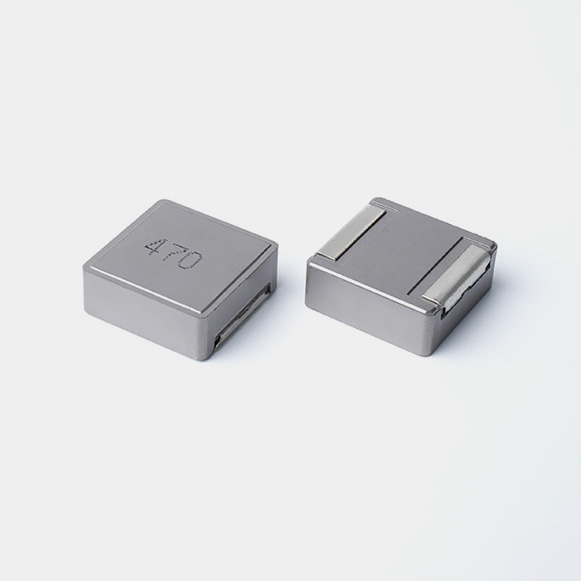

SC1770N Molded Power Inductor

型号	电感值	直流电阻	饱和电流	温升电流	测试频率	下载
Num	L	DCR	Isat	Irms	TEST FRAQ	Download
	( μH )	( mΩ )	( A )	( A )
	TYP	MAX	TYP	TYP
SC1770N-1R0M-R-S	1.0	1.5	50	35	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-1R5M-R-S	1.5	1.8	45	31	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-2R2M-R-S	2.2	2.8	40	28	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-3R3M-R-S	3.3	4.2	35	25	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-4R7M-R-S	4.7	5.0	26	22	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-5R6M-R-S	5.6	6.0	24	21	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-6R8M-R-S	6.8	7.5	21	18	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-100M-R-S	10	10.5	19	17	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-150M-R-S	15	16.0	15	12	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-220M-R-S	22	26.5	13	10	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-330M-R-S	33	37.0	12	9	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-470M-R-S	47	52.0	8	6	100KHz/0.1V	SC1770N-SERIES.PDF
SC1770N-151M-R-S	150	163	7	4	100KHz/0.1V	SC1770N-SERIES.PDF

Package：300pcs/r

|   SC1770N Molded Power Inductor Size

|   SC1770N Molded Power Inductor Application

SC1770N Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
