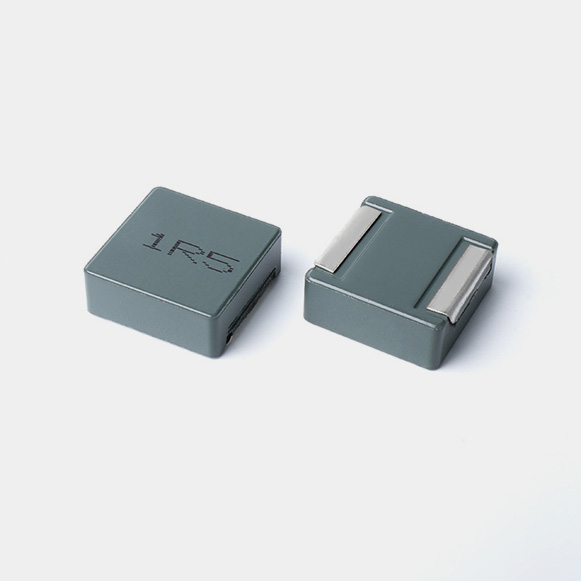

SC1770B Molded Power Inductor

share
WeChat
QQ
copy Link
Size Code 1770
L*W*H 17.8x17.3x7mm
Bonding Pad 2个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   SC1770B Molded Power Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号电感值直流电阻饱和电流温升电流测试频率下载
NumLDCRIsatIrmsTEST FRAQDownload

( μH ) ( mΩ )( A )
( A )


TYPMAXTYPTYP

SC1770B-2R2M-R-S2.2 ±20%2.56230100KHz/0.25V1.pngSC1770B-2R2-R-S.PDF
SC1770B-6R8M-R-S-LF6.8 ±20%7.52219100KHz/0.1V1.pngSC1770B-6R8-R-S-LF.PDF


Package：300pcs/r




|   SC1770B Molded Power Inductor Size


A：17.8MAX mmB：17.3MAX mm
C：7.0MAX mmD：12.0±0.5 mm
E：2.5±0.5 mmF：20.0typ mm
G：12.4typ mmH：12.4typ mm







|   SC1770B Molded Power Inductor Application

SC1770B Molded Power Inductor is widely used in consumer electronics, small household appliances, high-speed hair dryers, audio equipment, headphones, vacuum cleaners, etc.
