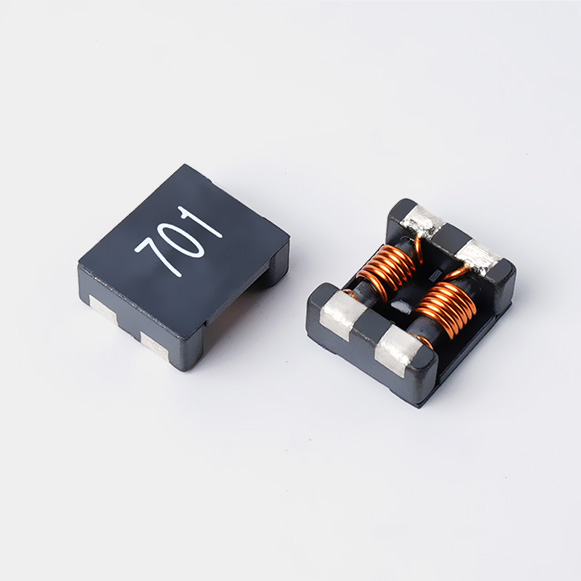

FCM1513 Common Mode Inductor

share
WeChat
QQ
copy Link
The common mode inductors suitable for SMT mounting are mainly used to suppress electromagnetic interference. They are applied in power circuits and automotive circuits for filtering. The FCM1513 model has impedance Z values of 70Ω, 250Ω, 450Ω, 600Ω, 800Ω, and 1300Ω.
Size Code 1513
L*W*H 15x15.6x13.5mm
Bonding Pad 4个
sales@coilsfenfa.com;marketing@coilsfenfa.com
Send us messages
Detail

|   FCM1513 Common Mode Inductor Specification

On the mobile device, hold the table and swipe left or right to view the detailed parameters.


型号阻抗直流电阻额定电流绝缘电阻印字下载
NumZDCRIDCIRtypeface.Download

( Ω ) at100MHz/0.5V( mΩ )( A )
( mΩ )White

MINTYPMAXMAXMIN

FCM1513-121-R-S701203.510101211.pngFCM1513-SERIES.PDF
FCM1513-301-R-S250300513103011.pngFCM1513.-SERIES.PDF
FCM1513F-121-40A-R-S100120540101211.pngFCM1513F-121-40A-R-S.PDF
FCM1513F-501-20A-R-S-双线350500220105011.pngFCM1513F-501-20A-R-S-双线.PDF
FCM1513-551-R-S450550610105511.pngFCM1513-SERIES.PDF
FCM1513-701-R-S600800710107011.pngFCM1513-SERIES.PDF
FCM1513-102-R-S80010008.510101021.pngFCM1513-SERIES.PDF
FCM1513-152-R-S13001500918101521.pngFCM1513-SERIES.PDF
FCM1513F-100-R-S-LF1500
12.518101001.pngFCM1513F-100-R-S-LF.PDF
FCM1513F-220-R-S-LF2000
15.518102201.pngFCM1513F-220-R-S-LF.PDF


Package：350pcs/r





|   FCM1513 Common Mode Inductor Size


A：15.0±0.5 mmA1：15.6±0.6 mm
B：13.5±0.5 mmC：6.6MAX mm
D：6.5±0.3 mmE：9±0.3 mm
F：3.2typ mmG：3.2typ mm
a：2.8ref mmb：9ref mm
c：3ref mmd：3.4ref mm






|   FCM1513 Common Mode Inductor Winding







|   FCM1513 Common Mode Inductor Application

FCM1513 Common Mode Inductor is Widely used in automotive electronics, consumer electronics, switching power supplies, multimedia equipment, industrial equipment, and communication equipment.
