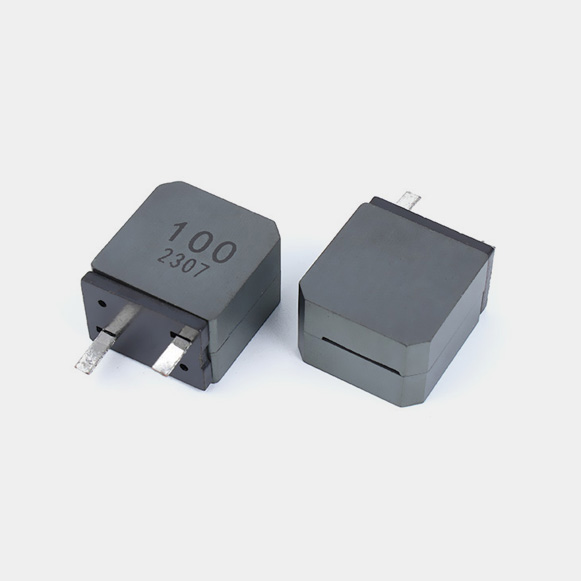

EP1410 Inductor for Digital Amplifier
share
Technical highlights of the EP1410 series Inductor for Digital Amplifier (produced by Fenfa Electronic):
Designed for D-class power amplifier devices/digital amplifiers
Uses flat copper wires and a sealed magnetic circuit structure to prevent radiation interference
Pin-type plug-in, with low resistance and high current capacity
Designed for D-class power amplifier devices/digital amplifiers
Uses flat copper wires and a sealed magnetic circuit structure to prevent radiation interference
Pin-type plug-in, with low resistance and high current capacity
Detail
| EP1410 Inductor for Digital Amplifier Specification
On the mobile device, hold the table and swipe left or right to view the detailed parameters.
| 型号 | 电感值 | 直流电阻 | 额定电流 | 下载 |
| Num | L | DCR | IDC | Download |
| ( μH ) at100KHz/0.25V | ( mΩ ) | ( A ) | ||
| ±20% | MAX | TYP | ||
| EP1410-100M-B-S | 10 | 6.8 | 12.5 |
Package：225pcs/tray
| EP1410 Inductor for Digital Amplifier Size
| A：14±0.5 mm | B：16MAX mm |
| C：10±0.5 mm | D：5.0±0.5 mm |
| E：9.8±0.5 mm | F：4.3±0.5 mm |
| EP1410 Inductor for Digital Amplifier Application
EP1410 Inductor for Digitail Amplifier is widely used in home digital amplifiers, audio equipment, and automotive digital amplifiers.
